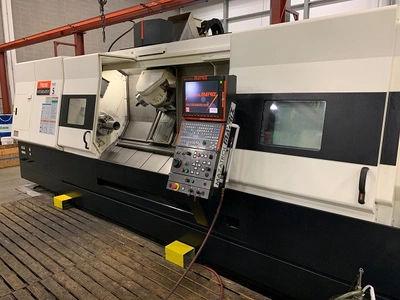

Mazak INTEGREX 400-IVS 2500 (2018)
Sell your Mazak INTEGREX 400-IVS 2500 2018 today.
Mazak INTEGREX 400-IVS 2500 Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.46" |
| 2nd Spindle Chuck | 10" |
| 2nd Spindle HP | 35 HP |
| 2nd Spindle RPM | 4000 RPM |
| 5 Axis Machining | Yes |
| A Axis Travel | Not Provided |
| A Axis Rapid Traverse | Not Provided |
| Accuracy and Precision | Not Provided |
| Approximate Dimensions | Not Provided |
| Approximate Machine Height | Not Provided |
| Approximate Machine Weight | 37,180 Lbs. |
| ATC Capacity | 110 ATC |
| ATC Magazine Capacity | Not Provided |
| Automatic Tool Changer Capacity | Not Provided |
| Axes | X, Z, Y, C, W |
| Axis Rapid Rates | Not Provided |
| Axis Travels | X: 24.8", Z: 100.75", Y: 9.06", C: Not Provided, W: 85.3" |
| B Axis Coupling | Not Provided |
| B Axis Head Indexing | .0001 Indexing |
| B Axis Travel | Not Provided |
| B Axis Milling Spindle Speed | 12000 RPM |
| B Axis Spindle Speeds | Not Provided |
| C Axis Travel | Not Provided |
| Control Type | Not Provided |
| Maximum Cutting Diameter | Not Provided |
| Maximum Cutting Length | 98.5" |
| Maximum Tool Diameter | 3.54" |
| Maximum Tool Length | 15.75" |
| Tool Change Time | Not Provided |
| Tool Holder Type | Not Provided |
| Weight Capacity | Not Provided |
| Workpiece Weight Capacity | Not Provided |
| Workpiece Size | Not Provided |
| Spindle Speed Range | 3300 - 4000 RPM |
| Spindle Motor Power | 40 HP |
| Tool Positions | Not Provided |
| Rapid Traverse Rate | Not Provided |
| Feed Rate | Not Provided |
| Cutting Speed | Not Provided |
| Number of Tools | Not Provided |
| Tool Storage Capacity | Not Provided |
| Chip Removal System | Not Provided |
| Coolant System | Not Provided |
| Drive System Type | Not Provided |
| Control System Type | Not Provided |
| Software Compatibility | Not Provided |
| Other | Swing Over Bed: 30", Turning Diameter: 26" - 30" Using Y Axis, Distance Between Spindles: 100.75", Chuck Size 1: 12", Chuck Size 2: 10", Spindle Nose 1: A2-8, Spindle Nose 2: A2-8, Bar Capacity 1: 4", Bar Capacity 2: 3.46", Spindle Horsepower 1: 40 HP, B - Axis Milling Spindle Taper: Capto C6, B - Axis Milling Spindle Horse Power: 25 HP, Tool Diameter: 3.54" / 4.92", Tool Weight: 22 Lbs., X - Axis Travel X1: 24.8", X - Axis Travel X2: 24.8", X - Axis Travel X3: 24.8", Z - Axis Travel Z1: 100.75", Z - Axis Travel Z2: 100.75", Z - Axis Travel Z3: 100.75", Y - Axis Travel Y1: 9.06", Y - Axis Travel Y2: 9.06", Y - Axis Travel Y3: 9.06", C - Axis Indexing 1: .0001, C - Axis Indexing 2: .0001, Rapid Traverse Rates X1: 1496 IPM, Rapid Traverse Rates X2: 1496 IPM, Rapid Traverse Rates X3: 1496 IPM, Rapid Traverse Rates Z1: 1496 IPM, Rapid Traverse Rates Z2: 1496 IPM, Rapid Traverse Rates Z3: 1496 IPM, Rapid Traverse Rates Y1: 1024 IPM, Rapid Traverse Rates Y2: 1024 IPM, Rapid Traverse Rates Y3: 1024 IPM. |
Do you have a Mazak INTEGREX 400-IVS 2500 to sell?
We are actively seeking a 2018 MAZAK INTEGREX 400-IVS 2500 CNC multi-tasking machine. This impressive piece of equipment, designed for both milling and turning operations, offers a remarkable swing over bed of 30 inches and a versatile turning diameter of 26 to 30 inches, utilizing the Y-axis for enhanced precision and flexibility. With a turning length of 98.5 inches and a distance between spindles measuring 100.75 inches, this machine is built to handle a wide range of jobs, making it a valuable asset for any shop looking to increase its capability. The INTEGREX 400-IVS 2500 features dual spindle configurations, with chuck sizes of 12 inches and 10 inches, allowing for efficient operation and quick setups. Both spindles boast impressive speeds, reaching up to 3300 and 4000 RPM, with horsepower ratings of 40 and 35 HP, respectively.
Additionally, the B-axis head indexing at .0001 ensures precise movements, while the B-axis milling spindle can achieve speeds of up to 12000 RPM, powered by a robust 25 HP motor. The automatic tool changer for the milling spindle supports 110 tools, accommodating various tool diameters and lengths, making it suitable for complex machining tasks. Sellers often part with machines like the MAZAK INTEGREX 400-IVS 2500 for several reasons. Some may be upgrading to newer technology to enhance their production capabilities, while others might be downsizing due to changes in business needs or even closing facilities. Underutilization can also prompt sellers to liquidate assets that no longer fit their operational goals.
Whatever the reason, we understand that selling your machine can be a significant decision, and we are here to make the process as seamless as possible. At Superior Machine Tools, we buy CNC machines nationwide, ensuring fast payments and handling all logistics to simplify your selling experience. If you own a 2018 MAZAK INTEGREX 400-IVS 2500 or a similar piece of equipment, we encourage you to reach out to us. Let us help you turn your unused machinery into cash while you focus on your next steps in business.
