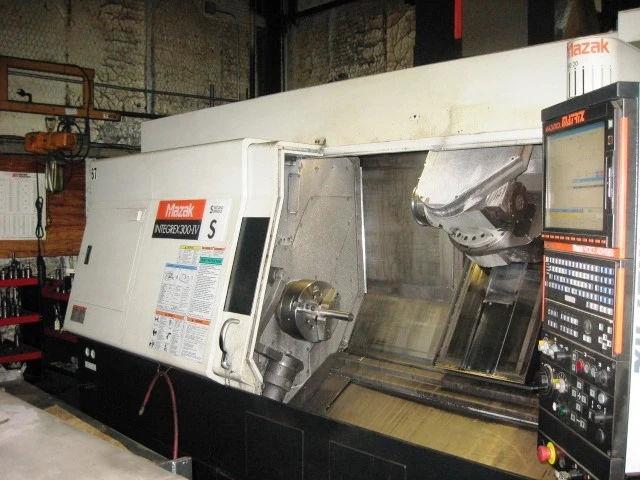

Sell your Mazak INTEGREX 300 IVS 2011 today.
Mazak INTEGREX 300 IVS Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 2.0 |
| 2nd Spindle Chuck | 8" |
| 2nd Spindle HP | 35 |
| 2nd Spindle RPM | 4,000 RPM |
| 5 Axis Machining | Yes |
| 12 Position Lower Turret | Yes |
| A Axis Travel | Not Available |
| A Axis Rapid Traverse | Not Available |
| Accuracy and Precision | Not Available |
| Air Requirements | Not Available |
| Approximate Dimensions | Not Available |
| Approximate Machine Height | Not Available |
| Approximate Machine Weight | Not Available |
| ATC Capacity | 40 |
| ATC Magazine Capacity | 40 |
| Automatic Tool Changer Capacity | 40 |
| Axes | 5 |
| Axis Rapid Rates | Not Available |
| Axis Travels | X: 24.83, Z: 62.41, Y: +/- 4.13 |
| Axis X | 24.83 |
| Axis Y | +/- 4.13" |
| Axis Z | 62.41 |
| B Axis Coupling | 5 Degree |
| B Axis Head Indexing | 0.001 Deg |
| B Axis Travel | +/- 120 Deg |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Speeds | Not Available |
| C Axis Travel | Not Available |
| Control Type | CNC (Mazatrol Matrix) |
| Maximum Cutting Diameter | 30" |
| Maximum Cutting Length | 60.2" |
| Maximum Tool Diameter | 3.54"/4.72" |
| Maximum Tool Length | 11.8" |
| Tool Change Time | Not Available |
| Tool Holder Type | Not Available |
| Weight Capacity | Not Available |
| Workpiece Weight Capacity | Not Available |
| Workpiece Size | Not Available |
| Spindle Speed Range | 40-4,000 RPM |
| Spindle Motor Power | 40 HP |
| Tool Positions | Not Available |
| Rapid Traverse Rate | Not Available |
| Feed Rate | Not Available |
| Cutting Speed | Not Available |
| Number of Tools | Not Available |
| Tool Storage Capacity | 40 ATC Capto |
| Chip Removal System | Yes |
| Coolant System | Not Available |
| Drive System Type | Not Available |
| Control System Type | CNC (Mazatrol Matrix) |
| Software Compatibility | Not Available |
| Other | Maximum Swing: 30", Main Spindle Bore/Max Bar Capacity: 3.5/3.0, Tail Stock/Sub Spindle: Sub Spindle, Maximum Swing Over Cross Slide: 30", W-Axis Travel Sub Spindle: 60.24 in, Main Spindle Chuck Size: 10", Main Spindle Chuck Type: Hydraulic, Main Spindle Bore Diameter: 3.58", Main Spindle Maximum Bar Work: 3", Main Spindle Speed: 4,000 RPM, Main Spindle Horsepower (CONT. /30 MINS): 40, Sub Spindle/2nd Spindle Chuck Type: Hydraulic, Sub Spindle/2nd Spindle Speed: 4,000 RPM, Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 35, B-Axis Rotary Tool Spindle Horsepower: 25 HP, Chip Conveyor: Yes, Milling Spindle Synchronous Tapping: Yes, Tool Eye Automatic Front Spindle: Yes, Tool Eye Automatic Second Spindle: Yes, SPECIFICATIONS: (SUBJECT TO CUSTOMER VERIFICATION), SPINDLE NOSE: 2-8, C - AXIS: .0001 INCREMENTS, Y - AXIS: +/- 4.13", B - AXIS (NA CONTOURING): +/- 120 DEGREE, B-AXIS / COUPLING: .001 / 5 DEGREE, SECOND SPINDLE RPM: 4,000, SECOND SPINDLE INDEXING: .0001 INCREMENTS, SECOND SPINDLE TRAVEL: 60.24", RAPID TRAVERSE RATES C - AXIS: 555 RPM, X - AXIS: 1496 IPM, Z - AXIS: 1496 IPM, Y - AXIS: 1024 IPM, B - AXIS: 400 RPM, MIN. SPINDLE INDEXING (MAIN SPINDLE): .0001, MIN. SPINDLE INDEXING (SECOND SPINDLE): .0001, MAX. TOOL WEIGHT: 22 LBS., Z - AXIS THRUST: 3124 FT/LBS. |
Do you have a Mazak INTEGREX 300 IVS to sell?
We are actively seeking a 2011 MAZAK INTEGREX 300 IVS CNC Multi-Tasking Machine. This advanced model is equipped with features that enhance its versatility and efficiency, making it a valuable asset for any manufacturing facility. With a maximum swing of 30 inches and a maximum cutting length of 60.2 inches, this machine is designed to handle a wide variety of machining tasks. The INTEGREX 300 IVS boasts impressive specifications including a main spindle speed of 4,000 RPM and a sub spindle speed that matches, allowing for seamless operation and increased productivity. The machine's main spindle has a bore diameter of 3.58 inches and can accommodate bar work up to 3 inches, while the sub spindle offers additional capabilities with an 8-inch chuck size. The CNC control is powered by the MAZATROL MATRIX, providing intuitive operation and precise control over machining processes.
The machine also features a 40-station automatic tool changer (ATC), enabling quick tool swaps and reducing downtime. Additionally, the INTEGREX 300 IVS includes a B-axis with +/- 120 degrees of travel, which allows for complex machining operations that many shops demand today. The Y-axis travel of +/- 4.13 inches further enhances its ability to produce intricate parts with high accuracy. The chip conveyor ensures a clean working environment, helping maintain efficiency during operations. Sellers often part with their machines for various reasons, including upgrading to newer technology, downsizing operations, or even closing plants. We understand that these decisions can be challenging, and we aim to make the selling process as smooth as possible.
By choosing to sell your MAZAK INTEGREX 300 IVS to us, you can expect fast payments and a hassle-free logistics process. We handle everything, ensuring that you can focus on your next steps without the stress of the sale. At Superior Machine Tools, we buy nationwide and are committed to providing you with a fair offer for your equipment. If you're ready to sell your CNC Multi-Tasking Machine, reach out to us today and discover how easy it can be to convert your equipment into cash.
