Sell your Mazak INTEGREX-100-4S 2006 today.
Mazak INTEGREX-100-4S Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 2.4" |
| 2nd Spindle RPM | 6,000 RPM |
| 2nd Spindle HP | 10/15 HP (AC) |
| Maximum Cutting Diameter | 21.46" |
| Maximum Cutting Length | 29.65" |
| Maximum Distance Between Chuck Faces | 31.18" |
| Spindle Speed (Main) | 6,000 RPM |
| Spindle Horsepower (Main) | 10/15 HP (AC) |
| Spindle Torque (Main) | 119 ft-lbs. |
| Type of Turret | 1 position w/ATC |
| Tool Shank Height | 3/4" |
| Control Type | Mazatrol Matrix CNC Control |
| Maximum Swing | 21.46" |
| Maximum Swing using Y-axis | 16.22"-21.46" |
| Maximum Swing over Cross Slide | 13.86" |
| Chip Conveyor | Side Disposal |
| Automatic Tool Eye | Yes |
| Chuck Air Blast | Yes |
| Automatic Parts Catcher | Yes |
| Windows XP Operating System | Yes |
| Other | Equipped with: 15 Color LCD, EIA/ISO Code Input Function, GOO Slope Constant, Shape Compensation for Rotary Axes, Mazacc-2D Software, Cylindrical & Polar Coordinate, Mill Spindle Synchronous Tapping, Inch/Metric Conversion, CARDBUS I/F (2-Slot), LAN Port, USB I/F, Y-Axis Control, Coolant Through Milling Head, 213 PSI Thru Coolant/Flood Coolant Simul-Flowable, Rotary Tool Spindle Speed: 12,000 RPM, B-Axis 0.0001 Deg/Cntring, B-Axis Index: 5 Degree, Auto Chuck Jaws Open/Close, Chuck Open/Close Confirm, Automatic Parts Catcher w/Ejec, Royal Quick Change Collet Chuck for Main Spindle, Royal Quick Change Collet Chuck for Subspindle. |
Do you have a Mazak INTEGREX-100-4S to sell?

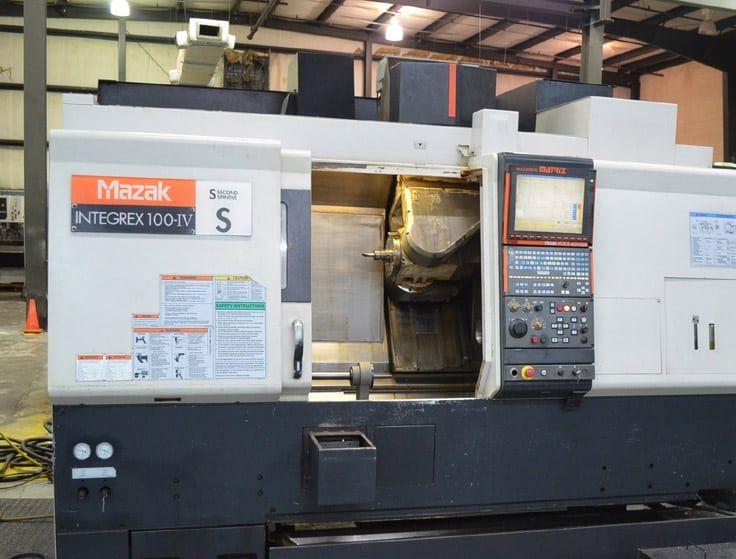

We are actively seeking a 2006 Mazak INTEGREX-100-4S CNC Multi-Tasking Machine. This impressive model features a robust design that combines turning and milling capabilities, making it an invaluable asset for shops looking to enhance their production efficiency. With a maximum swing of 21.46 inches and a maximum cutting diameter of the same measurement, this machine is built to handle a variety of workpieces. The INTEGREX-100-4S also boasts a cutting length of 29.65 inches and a maximum distance between chuck faces of 31.18 inches, allowing for versatility in machining larger components. Equipped with dual spindles that can reach speeds of up to 6,000 RPM, each offering a spindle horsepower of 10/15 HP (AC) and a torque of 119 ft-lbs., this CNC machine is designed for high-performance operations.
The advanced Mazatrol Matrix CNC Control enhances usability with features like a 15-color LCD, EIA/ISO code input function, and various software capabilities, including cylindrical and polar coordinate programming. The machine also incorporates a Y-axis control and a rotary tool spindle speed of 12,000 RPM, which further expands its machining capabilities. Owners often decide to part with their Mazak INTEGREX-100-4S for various reasons, such as upgrading to newer technology, downsizing operations, or even plant closures. If you find yourself in a similar situation, we understand the importance of a smooth and efficient selling process. We aim to make this transition as seamless as possible for you.
At Superior Machine Tools, we buy CNC machines nationwide and pride ourselves on offering fast payments and handling all logistics. Whether you're in aerospace, job shop, or manufacturing, we are here to help you get the best value for your equipment. Don't hesitate to reach out to us today and see how we can assist you in selling your Mazak INTEGREX-100-4S or any other machinery you may have.
