Sell your Mazak INT200IVS 2006 today.
Mazak INT200IVS Specifications
| # Axis | 2 |
|---|---|
| 2nd Spindle Bore | 2.99" |
| 2nd Spindle Chuck | 8" |
| 2nd Spindle HP | 25 HP |
| 2nd Spindle RPM | 5000 RPM |
| 5 Axis Machining | Yes |
| B Axis Head Indexing | +/- 225 Degrees |
| B Axis Milling Spindle Speed | 12000 RPM |
| B Axis Spindle Speeds | 12000 RPM |
| ATC Capacity | 120 |
| Tool Diameter | 3.54" / 4.92" |
| Tool Length | 11.8" |
| Tool Weight | 22 Lbs. |
| Axis X | 22.8" |
| Axis Z | 41.14" |
| Axis Y | 6.3" |
| C Axis Indexing | .0001 Degrees |
| W Axis Travel | 41.34" |
| Rapid Traverse Rate X | 1496 IPM |
| Rapid Traverse Rate Z | 1023 IPM |
| Rapid Traverse Rate Y | 1496 IPM |
| Approximate Machine Weight | 19,140 Lbs. |
| Other | Swing Over Bed: 26" |
| Turning Diameter | 26" |
| Turning Length | 40" |
| Distance Between Spindles | 41.34" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2-6 |
| Spindle Bore Diameter 1 | 2.99" |
| Bar Capacity 1 | 2.5" |
| Spindle Speeds 1 | 5000 RPM |
| Spindle Horsepower 1 | 30 HP |
| ATC Magazine Capacity | 120 |
| C Axis Travel | .001 Degrees |
| Machine Weight | 19,140 Lbs. |
Do you have a Mazak INT200IVS to sell?

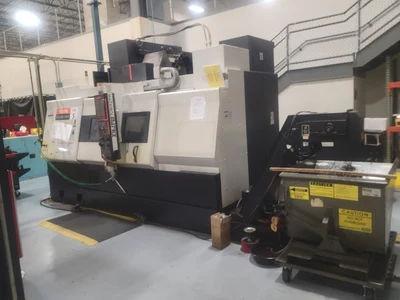

We are actively seeking a 2006 MAZAK INT200IVS CNC Multi-Tasking Machine. This impressive model boasts a swing over bed of 26 inches, allowing for robust turning capabilities with a turning diameter of 26 inches and a generous turning length of 40 inches. The machine features a distance between spindles of 41.34 inches, making it an excellent choice for versatility in machining operations. With two 8-inch chucks and a spindle nose size of A2-6, this model is well-equipped for a variety of tasks. The MAZAK INT200IVS is powered by two spindles, each capable of reaching up to 5000 RPM, with spindle horsepower rated at 30 HP for the first spindle and 25 HP for the second.
The B-Axis head indexing offers an impressive range of +/- 225 degrees, and the milling spindle can reach speeds of up to 12000 RPM with 25 HP. This machine is designed for efficiency with a 120-tool automatic tool changer for the milling spindle, accommodating tool diameters of 3.54 inches and 4.92 inches, and tool lengths of up to 11.8 inches. With a rapid traverse rate of 1496 IPM on the X and Y axes and 1023 IPM on the Z axis, this machine is built to handle demanding production schedules. Sellers often part with machines like the MAZAK INT200IVS for various reasons, including upgrading to newer technology, downsizing operations, or even closing facilities. Whatever the reason, we understand that selling your machine can be a significant decision, and we are here to make the process as seamless as possible.
At Superior Machine Tools, we buy used CNC machines nationwide, ensuring fast payments and handling all logistics for you. If you have a 2006 MAZAK INT200IVS or similar CNC multi-tasking machine that you're considering selling, we want to hear from you. Let us help you turn your unused machinery into cash without the hassle. Contact us today to discuss your options and get a competitive offer!
