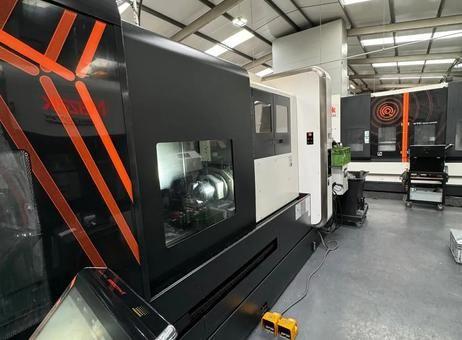

Mazak I-400-S Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.58" |
| 2nd Spindle Chuck | A2-8 |
| 2nd Spindle HP | 30/35 HP (AC) |
| 2nd Spindle RPM | 35-4,000 RPM |
| 5 Axis Machining | Yes |
| ATC Magazine Capacity | 72 tools |
| Axes | X, Y, Z |
| Axis X | 24.21" |
| Axis Y | 9.84" |
| Axis Z | 62.4" |
| B Axis Travel | 240 Degrees |
| B Axis Rapid Rate | 40 RPM |
| C Axis Rapid Rate | 555 RPM |
| Maximum Cutting Diameter | 25.9" |
| Maximum Cutting Length | 59.8" |
| Maximum Tool Diameter | 4.92" |
| Maximum Tool Length | 15.75" |
| Tool Change Time | 1.3 sec. |
| Tool Holder Type | Capto C6 |
| Tool Storage Capacity | 72 tools |
| Chip Removal System | Yes |
| Coolant System | Yes |
| Drive System Type | AC |
| Control System Type | CNC |
| Software Compatibility | Yes |
| Other | Maximum Swing: 25.9" |
| Maximum Swing over Cross Slide | 25.9" |
| Spindle Nose (Main) | A2-8 |
| Spindle Bore (Main) | 4.41" |
| Maximum Bar Work (Main) | 4.02" |
| Spindle Speed (Main) | 35-3,300 RPM |
| Spindle Horsepower (Main) | 40/40 HP (AC) |
| Spindle Torque (Main) | 1032 ft-lbs. |
| Spindle Nose (Second) | A2-8 |
| Maximum Bar Work (Second) | 4.02" |
| Spindle Horsepower (Second) | 30/35 HP (AC) |
| Spindle Torque (Second) | 369 ft-lbs. |
| Type of Turret | 1 position w/ATC |
| Tool Selection Method | Random Shortest Path |
| Max. Tool Dia. w/All Pockets Full | 3.54" |
| Workpiece Weight Capacity | 34,833 lbs. |
| Workpiece Size | 110.2" x 204.72" |
| Spindle Speed Range | 15-12,000 RPM(20K Opt) |
| Spindle Motor Power | 30 HP (AC) |
| Weight Capacity | 26.5 lbs. |
| Rapid Traverse Rate | 1969 IPM |
| Feed Rate | 1575 IPM |
| Cutting Speed | 1181 IPM |
| Number of Tools | 40 |
| Maximum Tool Weight | 26.5 lbs. |
| Rotary Tool Spindle Speed | 15-12,000 RPM(20K Opt) |
| Rotary Tool Spindle Horsepower | 30 HP (AC) |
| Rotary Tool Torque | 88.5 ft-lbs |
| Y-Axis Rapid Rate | 1575 IPM |
| Second Headstock W-Axis Travel | 61.96" |
| Second Headstock W-Axis Rapid Rate | 1181 IPM |
| Floor Space | 110.2" x 204.72" |
| Approximate Machine Height | 107.1" |
| Approximate Machine Weight | 34,833 lbs. |
Do you have a Mazak I-400-S to sell?
We are actively seeking a 2012 MAZAK I-400-S CNC Multi-Tasking Machine. This impressive machine, known for its versatility and precision, is a valuable asset for any machining operation. With a maximum swing of 25.9 inches and a maximum cutting diameter of the same size, the I-400-S is designed to handle a variety of machining tasks with ease. It features a cutting length of 59.8 inches, making it suitable for larger workpieces that require intricate detailing and complex operations. Equipped with a robust spindle nose of A2-8, this model boasts a spindle bore of 4.41 inches, allowing for substantial bar work with a maximum capacity of 4.02 inches.
The spindle speed ranges from 35 to 3,300 RPM, paired with a spindle horsepower of 40/40 HP (AC) and spindle torque of 1,032 ft-lbs, making it a powerhouse for demanding applications. Additionally, the second spindle, also with an A2-8 nose and a bore of 3.58 inches, operates at speeds up to 4,000 RPM with 30/35 HP (AC), ensuring flexibility in production. The I-400-S features a 1-position turret with an automatic tool changer (ATC) that has a magazine capacity of 72 tools. This allows for quick tool selection via a random shortest path method, with a tool-to-tool ATC time of just 1.3 seconds. Its maximum tool diameter with all pockets full is 3.54 inches, and it can accommodate tools up to 15.75 inches in length, making it an efficient choice for various operations.
As machine owners, you might be considering selling your I-400-S due to reasons such as upgrading to newer technology, downsizing operations, or even plant closures. Whatever your reason, we understand the challenges of parting with valuable machinery and are here to help. We buy used CNC machines like the MAZAK I-400-S nationwide, offering fast payments and taking care of all logistics to make the selling process as smooth as possible. If you're ready to sell your 2012 MAZAK I-400-S or have questions about the selling process, don't hesitate to reach out. We are committed to providing a respectful and straightforward selling experience, ensuring you receive fair value for your equipment.
