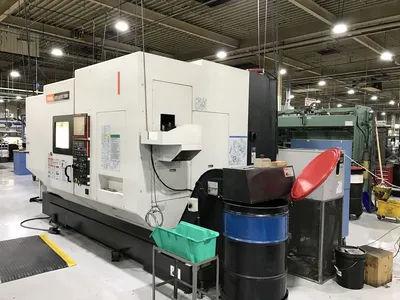

Mazak HYPER QUADREX 200MSY (2009)
Sell your Mazak HYPER QUADREX 200MSY 2009 today.
Mazak HYPER QUADREX 200MSY Specifications
| # Axis | 2 |
|---|---|
| 2nd Spindle Bore | 2.99" |
| 2nd Spindle Chuck | A2-6 |
| 2nd Spindle HP | 30 HP AC |
| 2nd Spindle RPM | 5000 RPM |
| 5 Axis Machining | Not Available |
| 12 Position Lower Turret | 12 Pos. VDI Drum |
| A Axis Travel | Not Available |
| A Axis Rapid Traverse | Not Available |
| Accuracy and Precision | Not Available |
| Air Requirements | Not Available |
| Approximate Dimensions | Not Available |
| Approximate Machine Height | Not Available |
| Approximate Machine Weight | 27,000 lbs. |
| ATC Capacity | Not Available |
| ATC Magazine Capacity | Not Available |
| Automatic Tool Changer Capacity | Not Available |
| Axes | Not Available |
| Axis Rapid Rates | Not Available |
| Axis Travels | X1: 9.06", X2: 9.06", Y1: + - 2.0", Y2: + 75" - 2.0", Z1: 17.7", Z2: 19.37" |
| Axis X | Not Available |
| Axis Y | Not Available |
| Axis Z | Not Available |
| B Axis Coupling | Not Available |
| B Axis Head Indexing | Not Available |
| B Axis Travel | Not Available |
| B Axis Milling Spindle Speed | Not Available |
| B Axis Spindle Speeds | Not Available |
| C Axis Travel | 1st: .0001 Degree, 2nd: .0001 Degree |
| Control Type | Not Available |
| Maximum Cutting Diameter | 13.54" |
| Maximum Cutting Length | Not Available |
| Maximum Tool Diameter | Not Available |
| Maximum Tool Length | Not Available |
| Tool Change Time | Not Available |
| Tool Holder Type | Not Available |
| Weight Capacity | Not Available |
| Workpiece Weight Capacity | Not Available |
| Workpiece Size | Not Available |
| Spindle Speed Range | Not Available |
| Spindle Motor Power | 30 HP AC |
| Tool Positions | Not Available |
| Rapid Traverse Rate | X1: 1181 IPM, X2: 945 IPM, Y1: 1024 IPM, Y2: 787 IPM, Z1: 1417 IPM, Z2: 1417 IPM, C1: 555 RPM, C2: 555 RPM |
| Feed Rate | Not Available |
| Cutting Speed | Not Available |
| Number of Tools | 12 |
| Tool Storage Capacity | Not Available |
| Chip Removal System | Not Available |
| Coolant System | Not Available |
| Drive System Type | Not Available |
| Control System Type | Not Available |
| Software Compatibility | Not Available |
| Other | Maximum Swing Diameter: 14.56"/12.598", Maximum Distance Between Spindles: 46.85, Maximum Bar Capacity 1st & 2nd: 2.56", Spindle Nose: A2-6, Spindle Torque 1st & 2nd: 344.4 FT/lbs, W - Axis Travel: 34.075", Tool Shank: 1" sq., Tool Size boring Bar Max. Diameter: 1.5", Total Number Of Tools Upper And Lower: 12, Tool Selection Method: Bi-directional, Tool Index Time: .2 Secs, Rotary Tool Speed: 6000 RPM, Rotary Tool HP: 7.5 HP AC, Rotary Tool Torque: 25.8 ft/lbs, Max. End Mill/drill/tap: .75" / .75" / M20x2.5 Dia, Total Power Requirements: 61 kVa. |
Do you have a Mazak HYPER QUADREX 200MSY to sell?
We are actively seeking a 2009 MAZAK HYPER QUADREX 200MSY CNC Multi-Tasking Machine. This impressive machine is designed for both turning and milling operations, making it a versatile addition to any shop floor. With a maximum swing diameter of 14.56 inches and a maximum distance between spindles of 46.85 inches, this model can handle a variety of workpieces with ease. The spindle bore for both the first and second spindles measures 2.99 inches, allowing for substantial bar capacities of up to 2.56 inches. The MAZAK HYPER QUADREX 200MSY is equipped with dual spindles, each capable of reaching speeds of up to 5000 RPM, providing the power needed for efficient machining. The upper and lower machining diameters are 13.54 inches and 8.26 inches, respectively, giving this machine the ability to tackle diverse tasks.
With a spindle horsepower of 30 HP AC for both spindles, this machine is built for performance. The C-axis travel for both spindles is precise to .0001 degrees, which is essential for intricate machining tasks. Additionally, the X and Y-axis travels are 9.06 inches and +/- 2.0 inches, respectively, while the Z-axis travels are 17.7 inches and 19.37 inches, allowing for a wide range of movement. The W-axis travel of 34.075 inches adds further flexibility. The spindle torque of 344.4 FT/lbs ensures that this machine can handle tough materials and demanding applications. We understand that many sellers part with their machines for various reasons, including upgrading to newer models, downsizing operations, or even plant closures.
If you're considering selling your MAZAK HYPER QUADREX 200MSY, we're here to help you through the process. We buy nationwide, ensuring a seamless transaction with fast payments and logistics handled on our end. Our goal is to make selling your machine as straightforward and efficient as possible. Whether your machine is underused or you're simply ready for an upgrade, reach out to us today and let us assist you in turning your asset into cash.
