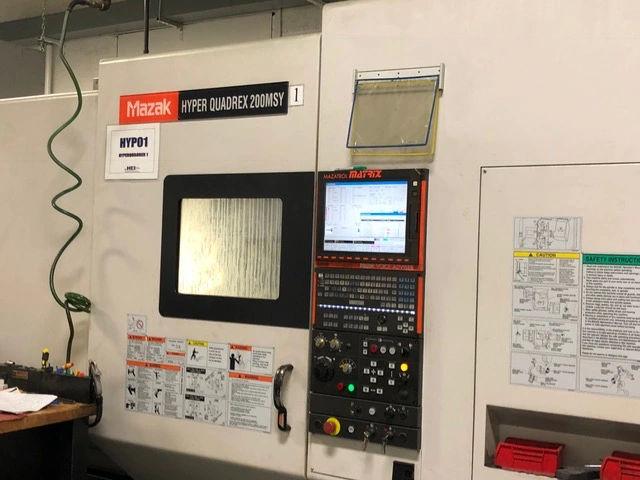

Sell your Mazak HQR 200MSY 2010 today.
Mazak HQR 200MSY Specifications
| # Of Turrets | 2 |
|---|---|
| Turret Tool Positions | 12 |
| Main Spindle Chuck Size | 8" (203.2 mm) |
| Main Spindle Bore Diameter | 3" (76.2 mm) |
| Main Spindle Maximum Bar Work | 2.56" (65.024 mm) |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| 2Nd Spindle Chuck Size | 8" |
| 2Nd Spindle Bore Size | 2.99" |
| 2Nd Spindle Chuck Type | Hydraulic |
| 2Nd Spindle Speed | 5,000 RPM |
| 2Nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| Main & Sub Spindle Synchronization | Yes |
| B Axis Rotary Tool Spindle Speed | 6,000 RPM |
| B-Axis Rotary Tool Spindle Horsepower | 7.5 HP |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL MATRIX) |
| Approx Dimensions Lxwxh | 137.6" x 103" (3495.04 mm x 2616.2 mm) |
| Maximum Swing | 14.56" (369.82 mm) |
| Max Turning Diameter | 13.4" (340.36 mm) |
| X-Axis Travel | 8.2" (208.28 mm) |
| Y-Axis Travel | 4" (101.6 mm) |
| Z-Axis Travel | 29.8" (757.72 mm) |
| Other | MAX MACHINING DIAMETER 13.4" |
| Other | FLOOR SPACE 137.6" x 103" (3495.04 mm x 2616.2 mm) |
Do you have a Mazak HQR 200MSY to sell?
We are actively seeking a 2010 MAZAK HQR 200MSY Multi-Axis CNC Lathe. This impressive machine is designed for high-performance machining, featuring a twin spindle and twin turret configuration that enhances productivity and efficiency in any machining environment. With a maximum swing of 14.56 inches and a turning diameter of 13.4 inches, the HQR 200MSY can handle a variety of workpieces with ease. The main spindle, which boasts a bore diameter of 3 inches and a maximum bar capacity of 2.56 inches, operates at a speed of up to 5,000 RPM, allowing for rapid and precise cutting operations. Equipped with an 8-inch main spindle chuck and a similar size for the sub-spindle, both spindles are synchronized to ensure seamless operation.
The X-axis travel measures 8.2 inches for the main spindle and 5.5 inches for the sub-spindle, while Z-axis travel reaches 29.8 inches and 32.81 inches, respectively. The Y-axis travel further adds versatility, with 4 inches for the main spindle and 2.75 inches for the sub-spindle. This model also includes a high-pressure coolant system operating at 213 PSI, ensuring optimal chip removal and cooling during machining processes. Many sellers choose to part with their MAZAK machines for various reasons, including upgrading to newer technology, downsizing their operations, or closing their facilities. If you find yourself in a similar situation, we understand the importance of a smooth transition and are here to help.
At Superior Machine Tools, we buy CNC machines nationwide, offering fast payments and taking care of logistics so you can focus on your next steps. Whether you're in aerospace, manufacturing, or job shop industries, your used MAZAK HQR 200MSY could be exactly what another company needs. Don't hesitate to reach out to us; we are ready to make you a competitive offer and ensure a hassle-free selling experience.
