Sell your Mazak HQR 100MSY 2017 today.

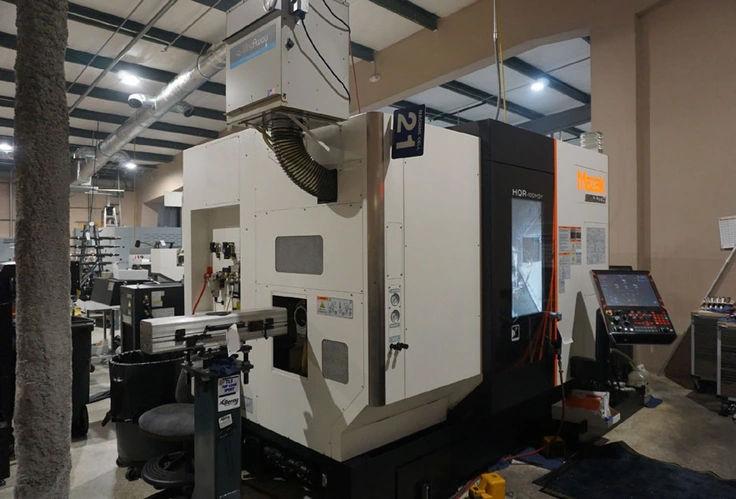

Mazak HQR 100MSY Specifications
| X-Axis Travel | 6.87" |
|---|---|
| Z-Axis Travel | 20.375" |
| Y-Axis Travel | +/- 2.0" |
| C-Axis Indexing | 0.0001 Deg. 3,600,000 Positions |
| W-Axis Travel Sub Spindle | 24.5 in |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower | 10/15 HP (AC) |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Number of Turrets | 2 |
| Turret Tool Positions | 12 |
| Turret Type | VDI |
| Turret Rotary Tool Spindle Speed | 600 |
| Turret Rotary Tool Horse Power | 7.0 |
| Chip Conveyor | Yes |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Workpiece Unloader & Conveyor | WORKPIECE UNLOADER & CONVEYOR (2.56” DIA X 7.09” L X 6.6 LB |
| Multi Tap Transformer | Yes |
| (HQR) Max. Swing Over Upper Turret | 12.6 in |
| (HQR) Max. Swing Over Lower Turret | 10.63 in |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 6" |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 6" |
| (HQR) Distance Between Chuck Jaw Faces (both spindles) | 24.375" |
| Control | CNC (MAZATROL SMOOTH G) |
| Dimensions | 112.7" x 90.2" x 95" |
| Weight | 19,930 lbs. |
| AXIS RAPID RATES | X1-AXIS 1181 IPM |
| Other | Y1-AXIS 1024 IPM |
| Other | Z1-AXIS 1575 IPM |
| Other | X2-AXIS LOWER 945 IPM |
| Other | Y2-AXIS LOWER 787 IPM |
| Other | Z2-AXIS LOWER 1575 IPM |
| Other | W-AXIS 1181 IPM |
| Other | C1/C2-AXIS 555 RPM |
Do you have a Mazak HQR 100MSY to sell?
We are actively seeking a 2017 MAZAK HQR 100MSY Multi-Tasking Lathe. This machine is a remarkable piece of technology that combines multiple functions into a single unit, making it an excellent choice for shops looking to maximize efficiency. With its X-axis travel of 6.87 inches and Z-axis travel of 20.375 inches, the HQR 100MSY provides the versatility necessary for a wide range of machining tasks. The Y-axis travel of +/- 2.0 inches adds further capability, allowing for complex geometries and detailed work. The machine features a main spindle with a chuck size of 6 inches, capable of speeds up to 6,000 RPM, making it suitable for high-speed machining applications. Additionally, the sub-spindle mirrors these capabilities, also featuring a 6-inch chuck and 6,000 RPM speed, which enhances productivity through simultaneous operations.
Equipped with two turrets, each with 12 tool positions, the HQR 100MSY maximizes tooling options and minimizes downtime during setups. The turret tool positions can accommodate a variety of cutting tools, providing the flexibility needed for diverse manufacturing processes. With a robust CNC control system (MAZATROL SMOOTH G), operators can expect intuitive programming and efficient cycle times. High-pressure coolant systems and chip conveyors are also integrated, promoting a clean and efficient work environment. Sellers often part with machines like the MAZAK HQR 100MSY for several reasons, including upgrading to newer technology, downsizing operations, or even closing facilities. If you're considering selling, it's important to know that we understand your situation and are here to help facilitate a smooth transition.
We buy machines from various industries, including aerospace, job shops, and manufacturing, ensuring you have a reliable buyer. At Superior Machine Tools, we buy nationwide and offer fast payments while handling all logistics, so you don't have to worry about a thing. If you own a 2017 MAZAK HQR 100MSY or similar model and are ready to sell, don't hesitate to reach out to us. We're here to make the selling process as easy and profitable as possible for you.
Frequently Asked Questions
What types of machinery and equipment do you purchase?
MTE buys a wide range of used and surplus machinery, including CNC machines, metalworking and fabrication equipment, industrial robots, inspection and testing systems, and material handling assets from industries such as metals manufacturing, oil and gas, automotive, and mining.
How does MTE assess the value of my surplus equipment?
Our team conducts a thorough review using current market data, equipment specifications, age, and condition. We provide fair market valuations given your specific situation to ensure you receive maximum value for your assets.
What is the process for selling my excess machinery to MTE?
We make it simple: contact us with asset details, and our specialists will review and coordinate an inspection if needed. After finalizing terms, we handle all logistics, removal, and payment for a smooth and efficient transaction.
How quickly can MTE complete the purchase and removal of my surplus equipment?
MTE prioritizes safe and efficient equipment removal, adhering to your company's specific requirements and timeframes. We coordinate all logistics to ensure the process is carried out safely and efficiently, minimizing risks and protecting both personnel and equipment.
What documentation is required to sell my used machinery?
We typically request detailed equipment information, such as make, model, year, and maintenance records, along with proof of ownership. Our team will guide you through all necessary paperwork to ensure a secure and transparent transaction.
Where is MTE located, and do you offer services outside Michigan?
While MTE is proudly based in Michigan, our services extend across the entire United States and internationally. No matter where your surplus machinery or equipment is located, our team has the experience and logistics capabilities to manage evaluations, purchases, and removals efficiently.
Is MTE an equipment broker?
No. Our business model is based on purchasing equipment outright — MTE does not act as a broker nor do we buy on consignment. We buy machinery and assets upfront, providing immediate payment and a straightforward transaction.
“Selling my CNC machine with MTE was seamless. The team guided me through every step and offered a fair price quickly.”
Michael Rodriguez
Plant Operations Manager
Have one to sell?
MTE is the direct buyer. Quote in 24-48 hours, free pickup, pay on collection.
