Sell your Mazak C 1995 today.
Mazak C Specifications
| Max Turning Diameter | 22.17″ |
|---|---|
| Max Turning Length | 60.21″ |
| Max Bar Capacity | 3.75″ |
| Swing Over Slide | 13.0″ |
| Swing Over Bed | 24.30″ |
| Distance Between Centers | 62.4″ |
| Power Source | AC 220 V, Three Phase, 60 Hz |
| Power Requirement | 42 kva |
| Overall Dimensions | 200″ x 86″ x 80″ High with Chip Conveyor |
| Weight | 15,500 lbs Approx. |
| X Axis Travel | 21.3″ |
| Z Axis Travel | 61.30″ |
| Rapid Traverse X Axis | 360 IPM |
| Rapid Traverse Z Axis | 394 IPM |
| Spindle Nose | A1-11 |
| Spindle Bore | 4.09 |
| Spindle Speed | 2200 RPM |
| Spindle Motor | 30 HP |
| Vertical Turret Capacity | 8 Stations |
| Horizontal Turret Capacity | 6 Stations |
| Tailstock Body Travel | 54.3″ |
| Tailstock Quill Dia. | 3.94″ |
| Tailstock Quill Stroke | 5.72″ |
| Tailstock Taper | MT-5. |
Do you have a Mazak C to sell?

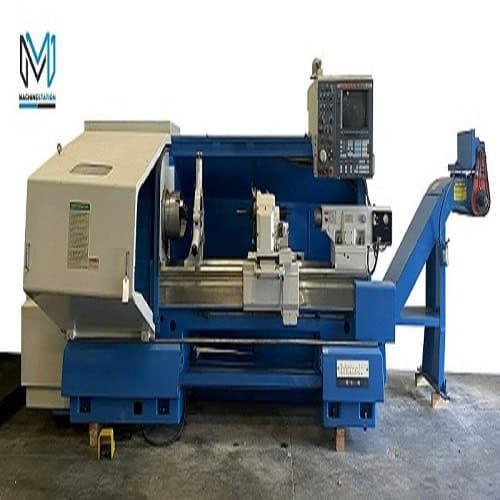

We are actively seeking a 1995 Mazak M-5N/1500U CNC Oil Country Big Bore Lathe. Known for its robust design and efficiency, this particular model is a great asset for any machining operation. With a maximum turning diameter of 22.17 inches and a maximum turning length of 60.21 inches, it's perfectly suited for handling large workpieces. The lathe also boasts a maximum bar capacity of 3.75 inches, ensuring versatility for various machining tasks. Its swing over the bed of 24.30 inches and swing over slide of 13.0 inches provide ample clearance for larger components, making it an ideal choice for industries focused on heavy-duty machining.
Equipped with AC 220 V, three-phase power, this machine requires a power input of 42 kva, making it suitable for industrial environments. The overall dimensions of the machine, measuring 200 inches long by 86 inches wide and 80 inches high, along with a weight of approximately 15,500 lbs, underscore its sturdy construction. The lathe features X and Z-axis travels of 21.3 inches and 61.30 inches, respectively, with rapid traverses of 360 IPM and 394 IPM, allowing for swift and efficient operation. The spindle nose is an A1-11 type, with a spindle bore of 4.09 inches and a maximum spindle speed of 2200 RPM, powered by a robust 30 HP motor. Additionally, the vertical turret capacity includes 8 stations, while the horizontal turret accommodates 6 stations, enhancing the machine's productivity and flexibility.
The tailstock features a travel of 54.3 inches and a quill diameter of 3.94 inches, with a taper of MT-5, providing further support for diverse machining operations. Sellers often part with machines like this for a variety of reasons, whether it's due to upgrading to newer models, downsizing their operations, or closing facilities. No matter the reason, we understand the importance of a smooth transition and are here to help. At Superior Machine Tools, we buy nationwide and offer fast payments, along with logistics support to make the selling process as seamless as possible. If you own a Mazak M-5N/1500U or similar equipment and are considering selling, reach out to us today to discuss your options!
