Sell your Mazak 6300Y 2009 today.

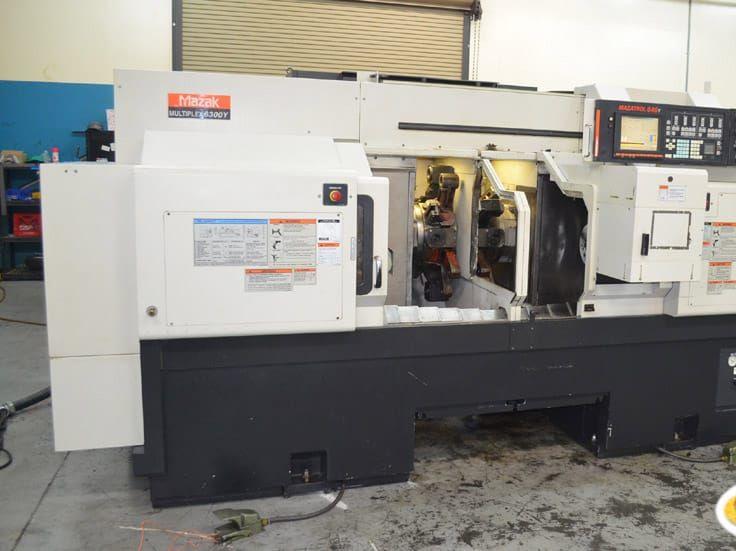

Mazak 6300Y Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.46" |
| 2nd Spindle RPM | 4,000 RPM |
| 12 Position Lower Turret | 12 |
| A Axis Travel | 360 degrees |
| A Axis Rapid Traverse | Not Available |
| Maximum Cutting Diameter | 16.93" |
| Maximum Cutting Length | 25.59" |
| Distance Between Spindle Faces (Max.) | 57.09" |
| Distance Between Spindle Faces (Min) | 9.82" |
| Spindle Nose | A2-8 |
| Maximum Bar Diameter | 3.0" |
| Spindle Speed Range | 4,000 RPM |
| Spindle Motor Power | 30 HP |
| Tool Positions | 24 |
| Rapid Traverse Rate | 945 IPM |
| Feed Rate | Not Available |
| Cutting Speed | Not Available |
| Number of Tools | 24 |
| Chip Removal System | Not Available |
| Coolant System | Not Available |
| Drive System Type | Not Available |
| Control System Type | Not Available |
| Software Compatibility | Not Available |
| Other | Maximum Swing: 16.93" |
| Standard Cutting Diameter | 13.0" |
| Maximum Cutting Length Chuckwork | 8.86" |
| Maximum Cutting Length Shaftwork | 25.59" |
| Spindle Bore | 3.46" |
| Spindle Indexing (C-Axis) | 0.001 deg./360,000 Positions |
| Spindle Horsepower (30 min.) | 30 HP (AC) |
| Spindle Torque | 441.34 ft.-lbs. |
| Type of Turrets | Dodecagonal/Drum Non-Lift |
| Tool Holder Shanks | Modified VDI |
| Turret Index Time (1 Step) | 0.3 Sec. |
| Total Number of Tools (Rotary Avail./All Positions) | 24 (12x2) |
| Tool Size (Turning & Facing) | 1" x 1" |
| Boring Bar Maximum Diameter | 2" |
| Mill Spindle Speed | 4,000 RPM |
| Mill Spindle Horsepower (10 Min) | 10 HP (AC) |
| Y-Axis Travel | +/- 3.0" |
| X-Axis Travel | 12.2" |
| Z-Axis Travel | 23.82" |
| Rapid Traverse (Y-Axis) | 393 IPM |
| Rapid Traverse (X-Axis) | 945 IPM |
| Rapid Traverse (Z-Axis) | 945 IPM |
| Rapid Traverse (C-Axis) | 400 RPM |
| Machine Floor Space (W x L) | 95.3" x 167.7" |
| Machine Height | 85.44" |
| Total Power Required (Machine Only) | 76 KVA |
| Air Requirements | 71 psi / 14 CFM |
| Total Weight (For Machine Only) | 26,400 lbs. |
Do you have a Mazak 6300Y to sell?
We are actively seeking a 2009 Mazak Multiplex 6300Y CNC Multi-Tasking Machine. This model is well-known for its impressive capabilities in both milling and turning, making it a valuable asset for any shop. With a maximum swing of 16.93 inches and a standard cutting diameter of 13.0 inches, this machine can efficiently handle a variety of projects. The maximum cutting length for chuck work reaches 8.86 inches, while the shaft work can extend up to 25.59 inches, providing versatility for different machining tasks. Equipped with a robust spindle that operates at speeds of up to 4,000 RPM, the Mazak Multiplex 6300Y boasts a spindle horsepower of 30 HP, ensuring powerful performance for demanding applications.
The spindle indexing capability of 0.001 degrees across 360,000 positions allows for precise machining, while the dodecagonal turret can hold up to 24 tools, enabling quick tool changes and increased productivity. The machine's rapid traverse rates of 393 IPM for the Y-axis and 945 IPM for both the X and Z axes further enhance its efficiency. We understand that many sellers part with their machines for various reasons, including upgrading to newer models, downsizing their operations, or even closing their facilities. Whatever your reason may be, we are here to offer you a straightforward selling experience. If you own a Mazak Multiplex 6300Y or a similar model, we invite you to reach out to us.
At Superior Machine Tools, we buy CNC machines nationwide, ensuring a hassle-free process for you. We offer fast payments and take care of logistics, allowing you to focus on what matters most. Trust us to provide a fair and competitive offer for your equipment. Let us help you turn your unused machinery into cash today!
