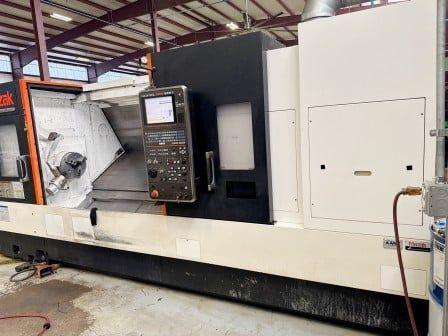

Mazak 350MSY Specifications
| Chuck Size | 12" |
|---|---|
| Maximum Swing | 29.5" |
| Standard Machining Diameter | 13.2" |
| Maximum Machining Diameter | 16.5" |
| Bar Work Capacity | 4.02" |
| Max Support Weight (including chuck) | 1,433 LBS (main) / 881 LBS (2nd) |
| Spindle Speed | 35 - 3,300 RPM |
| Spindle Nose | A2-11 |
| Spindle Through-hole Diameter | 4.41" |
| Spindle Motor Power | 30 HP |
| Spindle Torque | 596 FT/LBS |
| Secondary Spindle Speed | 35 - 4,000 RPM |
| Secondary Spindle Nose | A2-8 |
| Secondary Spindle Power | 25 HP |
| Number of Tools | 12 |
| Tool Size Turning (Outside/Inside) | 1" / 2" |
| Indexing Time (next/opposite) | 0.25/0.8 sec |
| Milling Spindle Speed | 4,000 RPM |
| Milling Motor Power | 10 HP |
| Maximum Torque of Milling Spindle | 70 FT/LBS |
| Axis X Travel | 10.75" |
| Axis Y Travel | 4" |
| Axis Z Travel | 63.19" |
| Axis W Travel | 62.402" |
| Rapid Traverse Rate (X/Y/Z/W) | 1181 IPM |
| Approximate Machine Height | 85.4" |
| Approximate Machine Width | 95.3" |
| Approximate Machine Length | 220.5" |
| Approximate Machine Weight | 29,000 LBS |
Do you have a Mazak 350MSY to sell?
We are actively seeking a 2014 Mazak Nexus 350MSY CNC Multi-Tasking Machine. This exceptional machine is designed to meet the needs of modern manufacturing, offering versatility and precision that shops highly value. With a chuck size of 12 inches and a maximum swing of 29.5 inches, the Nexus 350MSY excels in handling various machining tasks. Its standard machining diameter is 13.2 inches, while it can accommodate a maximum machining diameter of 16.5 inches, making it suitable for a wide range of applications. The machine boasts a bar work capacity of 4.02 inches, ensuring it can tackle diverse projects with ease. The spindle speed ranges from 35 to 3,300 RPM, providing the flexibility needed for both high-speed and heavy-duty machining.
The spindle nose features an A2-11 configuration, and its through-hole diameter measures 4.41 inches, allowing for efficient chip removal and enhanced productivity. With a spindle motor output of 40 HP for 30 minutes and 30 HP for continuous operation, along with a spindle torque of 596 FT/LBS, this machine is built for robust performance. Additionally, the secondary spindle speed reaches up to 4,000 RPM, with a secondary spindle motor output of 25 HP, further expanding its capabilities. The Nexus 350MSY is equipped with a 12-tool capacity, allowing for efficient tool changes with an indexing time of just 0.25 seconds for the next tool and 0.8 seconds for the opposite tool. The milling spindle operates at an impressive speed of 4,000 RPM, powered by a 10 HP motor, delivering a maximum torque of 70 FT/LBS. The machine offers substantial travel capabilities, with X travel at 10.75 inches, Y travel at 4 inches, Z travel at 63.19 inches, and W travel at 62.402 inches.
Rapid traverse rates reach up to 1181 IPM, ensuring quick movement between operations. Many sellers choose to part with their Mazak Nexus machines due to various reasons, such as upgrading to newer models, downsizing their operations, or closing facilities. We understand the circumstances that lead to these decisions and are here to make the selling process as smooth as possible. At Superior Machine Tools, we buy CNC machines nationwide, offering fast payments and handling all logistics for you. If you're ready to sell your 2014 Mazak Nexus 350MSY, contact us today to get started!
