Direct procurement2008 Model

Sell your Mazak QTN350II/1500 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

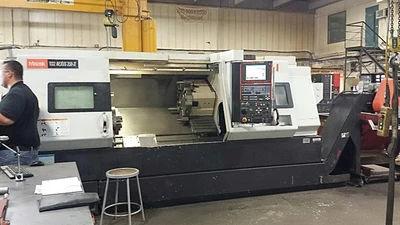

Make: Mazak
Model: QTN350II/1500
Year: 2008
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak QTN350II/1500 Specifications

Swing Over Bed: 26.8''
Max Cutting Diameter: 16.5''
Max Cutting Length: 62.2''
Spindle Nose: A2-11''
Spindle Bore Main: 4.4''
Spindle Speeds: 6-3300 RPM
Spindle Torque: 530 FT-LBS
Turret Positions: 12 POSITION
Tool Size: 1'' X 1'' X 6''
Turret Clamping Force: 11,700 LBS
Stroke Of Turret X: 8.875''
Stroke Of Turret Z: 59.125''
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate Z: 984 IPM
Tailstock Quill Diameter: 3.94''
Tailstock Center: MT # 5
Stroke Of Tail Body: 57.875''
Tool Size (Square Shank): 40/30 HP AC
Machine Weight: 16,600 lbs

Do you have a Mazak QTN350II/1500 to sell?

We are actively seeking a 2008 MAZAK QTN350II/1500 2-Axis CNC Lathe. This impressive machine features a swing over bed of 26.8 inches, allowing for a maximum cutting diameter of 16.5 inches and a cutting length of 62.2 inches. With a spindle nose of A2-11 inches and a spindle bore of 4.4 inches, the QTN350II/1500 is well-equipped for a variety of machining tasks. It operates at spindle speeds ranging from 6 to 3300 RPM, providing versatility for different materials and applications, while its spindle torque of 530 FT-LBS ensures that it can handle robust cutting operations with ease. The turret positions are designed with a modified VDI and offer 12 positions, accommodating tool sizes of up to 1 inch by 1 inch by 6 inches.

This lathe boasts a turret clamping force of 11,700 pounds, ensuring stability during machining processes. For efficiency, the stroke of the turret in the X and Z axes measures 8.875 inches and 59.125 inches, respectively, with rapid traverse rates of 1181 IPM in the X direction and 984 IPM in the Z direction. Additionally, the tailstock control is fully programmable, enhancing the machine's capabilities for precision tasks. The tailstock quill diameter is 3.94 inches, featuring a center of MT # 5 and a stroke of the tail body measuring 57.875 inches. With a powerful 40/30 HP AC motor, this machine weighs 16,600 pounds, making it a solid addition to any shop.

Many sellers part with their machines for various reasons, such as upgrading to newer models, downsizing operations, or even closing their facilities entirely. Whatever your reason, we understand that selling your machine can be a significant decision. At Superior Machine Tools, we aim to make this process as smooth and straightforward as possible. We also handle all logistics, so you can focus on what's next for your business. If you own a 2008 MAZAK QTN350II/1500 or a similar machine, reach out to us today and see how we can help you turn your equipment into cash.
