Sell your Haas TL-1 2010 today.

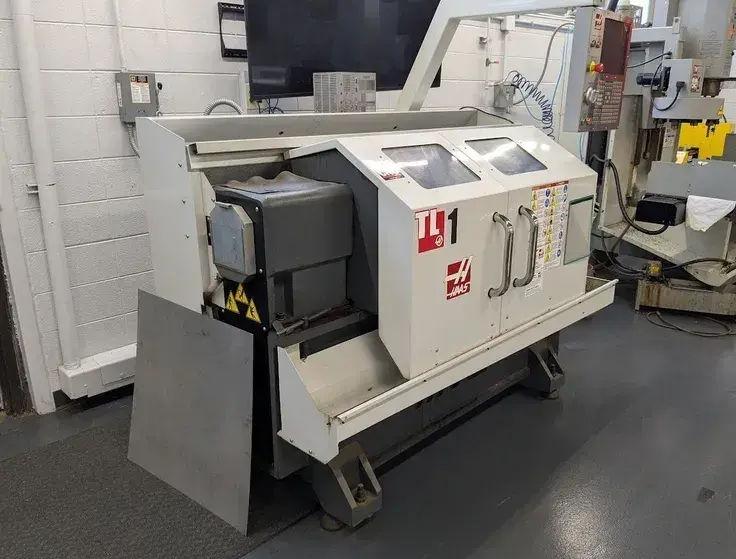

Haas TL-1 Specifications
| Swing | 20" 508 mm |
|---|---|
| Machining Length | 30 mm 1.1811" |
| Chuck Size | 8" 203.2 mm |
| Bar Capacity | 2.3" 58.42 mm |
| Power | 10 hp 7.5 kW |
| Max RPM | 1,800 RPM 1,800 RPM |
| Turning Dia | 16" 406.4 mm |
| Tailstock | Yes Yes |
| Control | CNC CNC |
| Dimensions | 89.0 in x 66.5 in x 83.0 in 226 cm x 169 cm x 211 cm |
| Weight | 4200 lb 2223.0 kg |
| Swing Diameter Over Front Apron | 20.0 in 508 mm |
| Over Cross Slide | 11.0 in 279 mm |
| Chuck (optional) | 8.0 in 203 mm |
| Max Cutting Length (varies with workholding) | 30.0 in 762 mm |
| Max Cutting Diameter (varies with turret) | 16.0 in 406 mm |
| Between Centers | 30.0 in 762 mm |
| X Axis | 8.00 in 203 mm |
| Z Axis | 30.00 in 762 mm |
| Rapids on X | 450 ipm 11.4 m/min |
| Rapids on Z | 450 ipm 11.4 m/min |
| Max Thrust X | 3894 lbf 17321 N |
| Max Thrust Z | 1947 lbf 8661 N |
| Spindle Nose | A2-5 A2-5 |
| Max Rating | 10.0 hp 7.5 kW |
| Max Speed | 1800 rpm 1800 rpm |
| Max Torque | 108.0 ft-lbf @ 355 rpm 146.0 Nm @ 355 rpm |
| Spindle Bore | ø 2.30 in 58.0 mm |
| Inline Air Hose | 3/8 in 3/8 in |
| Coupler (Air) | 3/8 in 3/8 in |
| Air Pressure Min | 80 psi 5.5 bar |
| Spindle Speed | 1800 rpm 1800 rpm |
| Drive System | Direct Speed, Belt Drive Direct Speed, Belt Drive |
| Spindle Power | 10.0 hp 7.5 kW |
| Input AC Voltage (1 Phase) | 220 VAC 220 VAC |
| Full Load Amps (1 Phase) | 40 A 40 A |
| Input AC Voltage (3 Phase) - Low | 220 VAC 220 VAC |
| Full Load Amps (3 Phase) - Low | 25 A 25 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC 440 VAC |
| Full Load Amps (3 Phase) - High* | 13 A 13 A |
| Domestic Pallet | 89.0 in x 66.5 in x 83.0 in 226 cm x 169 cm x 211 cm |
| Export Pallet | 89.0 in x 66.5 in x 83.0 in 226 cm x 169 cm x 211 cm |
| Weight w/Conveyor | 4620 lb 4620 lb |
| Domestic Pallet w/Conveyor | 121 in x 70 in x 83 in 307 cm x 178 cm x 211 cm |
| Export Pallet w/Conveyor | 121 in x 70 in x 83 in 307 cm x 178 cm x 211 cm |
| Max Thrust Z | 1947 lbf 8661 N. |
Do you have a Haas TL-1 to sell?
We are actively seeking a 2010 HAAS TL-1 CNC Lathe. This highly versatile machine is known for its exceptional performance and precision capabilities, making it a valuable addition to any machining operation. The TL-1 boasts a 20-inch swing and a machining length of 30 inches, providing ample space for various workpieces. With an 8-inch chuck size and a bar capacity of 2.3 inches, it is well-equipped to handle a range of materials and sizes, ensuring you can tackle diverse projects with ease. Powering the HAAS TL-1 is a robust 10 HP spindle that can reach a maximum speed of 1,800 RPM, allowing for efficient cutting and shaping of materials.
The spindle's torque of 108 ft-lb at 355 RPM ensures that you have the necessary force for demanding tasks. The machine also features a direct speed and belt drive system, enhancing its reliability and performance during operation. In terms of dimensions, the TL-1 measures 89 inches in length, 66.5 inches in width, and 83 inches in height, with a weight of approximately 4,200 pounds. This substantial size allows for stability during machining operations, while the rapid feed rates of 450 inches per minute on both the X and Z axes ensure that you can work efficiently without sacrificing accuracy. The HAAS TL-1 is equipped with a tailstock, further enhancing its versatility.
It also supports a spindle bore of 2.3 inches, making it suitable for various applications. If you're looking to sell your 2010 HAAS TL-1 CNC Lathe, we are ready to make you a competitive offer. Contact us today to discuss how we can facilitate a smooth transaction.
