CNC Gear Machinery

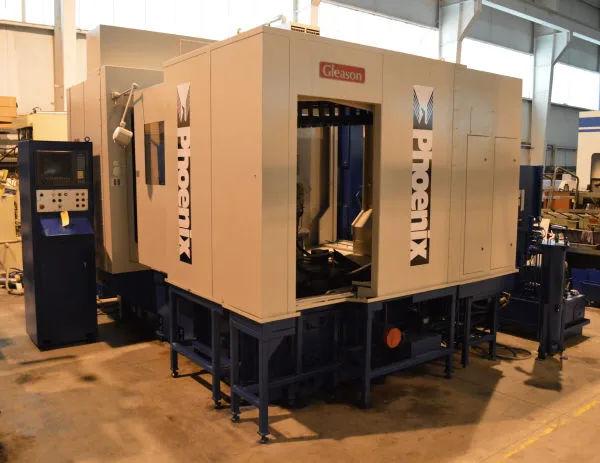

Gleason PHOENIX (1995)

Call 800-822-9524

Sell your Gleason PHOENIX 1995 today.

MakeGleason

ModelPHOENIX

Year1995

CategoryCNC Gear Machinery

ConditionUsed

Gleason PHOENIX Specifications

AAxis Work Spindle Ac Servo	50.0 66.0
AAxis Work Spindle Face Hobbing RPM	0-67 RPM 0-333 RPM
AAxis Work Spindle Face Milling RPM	0-67 RPM 0-333 RPM
B Axis Swivelling Axis	0 to 30 deg/sec N/A
B Axis Swinging Base Ac Servo	4.4 5.9
C Axis Cutter Spindle Ac Drive	226.7 307.3
X Axis Speed	0 to 80mm/sec
Y Axis Speed	0 to 80mm/sec
Z Axis Speed	0 to 80mm/sec
Coolant System	5 HP
Chip Conveyor	½ HP
Approx Net Weight	42,500 Lbs(19,318 kGs)
Other	GE-FANUC 150M Computer Control with spiral bevel gear
Other	Setup and control of six (6) axes
Other	Complete coolant plant, pump tank & piping with magnetic chip conveyor
Other	Work-spindle bore 8” (#80 taper) with optional work chamber and control box lighting
Other	Chiller unit for coolant system
Other	Control circuit is 110 VAC with 24 VDC input and controller, replacement parts list, hydraulic
Other	Calibration Spheres
Other	Capacity
Other	Chuck Speed
Other	Clamping System
Other	Coarsest Diametral Pitch
Other	Column
Other	Maximum Axial Travel
Other	Control System
Other	Control Type
Other	Control Unit
Other	Control Voltage
Other	Arbor Diameter
Other	Cutter Diameter
Other	Cutter Length Max
Other	Maximum Cutter Speed
Other	Maximum Normal Module
Other	Maximum Spindle Speed
Other	Stroke Rate Range
Other	Cutter Speeds
Other	Cutter Spindle Diameter

Do you have a Gleason PHOENIX to sell?

We are actively seeking a 1995 Gleason Phoenix CNC Gear Hobbing machine. This model, known for its impressive capabilities, is designed for cutting spiral bevel and hypoid gears with precision. The Gleason Phoenix features a root angle range of -5º to 90º, making it versatile for various gear applications. With a work spindle rotational speed ranging from 0 to 333 RPM, this machine can handle a variety of tasks efficiently. Additionally, the swinging base operates at 0 to 30 degrees per second, allowing for swift adjustments during operation. The cutter spindle on the Phoenix is capable of reaching up to 240 RPM, providing the speed necessary for high-quality gear production.

Its horizontal and vertical axes offer linear motion speeds of up to 80mm per second, ensuring that this machine can keep pace with the demands of modern manufacturing environments. The AC servo motors for the various axes enhance the machine's responsiveness and accuracy, which is crucial for producing gears that meet precise specifications. Many sellers choose to part with machines like the Gleason Phoenix for a variety of reasons. Upgrading to newer technology, downsizing operations, or closing facilities can all lead to the decision to sell. If you find that your Phoenix is underused or no longer fits your production needs, we are here to help you navigate the selling process smoothly. At Superior Machine Tools, we pride ourselves on offering fast payments and handling all logistics for the machines we buy.

Whether you are in aerospace, manufacturing, or a job shop, we understand the importance of a quick and hassle-free transaction. Our team is dedicated to ensuring that your experience is straightforward and professional, allowing you to focus on your next steps. If you are ready to sell your 1995 Gleason Phoenix CNC Gear Hobbing machine, reach out to us today. We buy nationwide and are eager to assist you in getting the best value for your equipment.
