CNC Gear Machinery

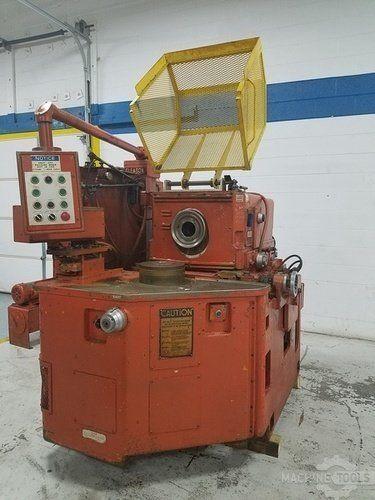

Gleason 512 HYPOID TESTER

Call 800-822-9524

Sell your Gleason 512 HYPOID TESTER today.

MakeGleason

Model512 HYPOID TESTER

CategoryCNC Gear Machinery

ConditionUsed

Gleason 512 HYPOID TESTER Specifications

Approx Net Weight	0
Approximate Dimensions	0
Arbor Diameter	0
Bore	0
Brake Spindle Bore Large End	3-29/32"
Brake Spindle Bore Taper Per Ft	39/64"
Capacity	0
Center Distance	0
Chuck Speed	0
Diameter Cutters	0
Maximum Normal Module	0
Maximum Spindle Speed	0
Cutter Spindle Diameter	0
Other	Chip Conveyor
Other	Calibration Spheres
Other	Control System
Other	Control Type
Other	Control Voltage
Other	Coolant System
Other	Column, Maximum Axial Travel
Other	Cutter Arbor Cone
Other	Cutter Diameter
Other	Cutter Length Max
Other	Maximum Cutter Speed
Other	Stroke Rate Range
Other	Cutter Speeds
Other	Gear outside diameter (maximum): 508mm
Other	Pinion outside diameter (maximum): 254mm
Other	Offset of pinion spindle L or R of gear spindle center (max): 101.6mm
Other	Diameter of taper hole at large end (Pinion spindle): 3-29/32"
Other	Taper per foot (Pinion spindle): 39/64"
Other	Depth of taper (Pinion spindle): 3"
Other	Diameter of hole at small end (Pinion spindle): 3.740"
Other	Depth of hole at small end from face of spindle (Pinion spindle): 15.5"
Other	Diameter of taper hole at large end (Gear spindle - Standard): 2-19/64"
Other	Diameter of taper hole at large end (Gear spindle - Large Bore): 3-29/32"
Other	Taper per foot (Gear spindle - Standard): 1/2"
Other	Taper per foot (Gear spindle - Large Bore): 39/64"
Other	Depth of taper (Gear spindle - Standard): 3"
Other	Depth of taper (Gear spindle - Large Bore): 3"
Other	Depth of hole at small end (Gear spindle - Standard): 2.168"
Other	Depth of hole at small end (Gear spindle - Large Bore): 3.740"
Other	Depth of hole at small end from face of spindle (Gear spindle - Standard): 8"
Other	Depth of hole at small end from face of spindle (Gear spindle - Large Bore): 7"

Do you have a Gleason 512 HYPOID TESTER to sell?

We are actively seeking a GLEASON 512 HYPOID TESTER, a renowned gear inspection machine that can significantly enhance your shop's capabilities. This model is designed for precise gear testing, making it an essential asset for any facility involved in gear manufacturing or inspection. With a maximum gear outside diameter of 508mm and a maximum pinion outside diameter of 254mm, the 512 HYPOID TESTER is equipped to handle a variety of gear sizes. The offset of the pinion spindle allows for adjustments up to 101.6mm from the gear spindle center, providing flexibility for different testing scenarios. The specifications of this machine are impressive. The pinion spindle features a taper hole at the large end measuring 3-29/32" with a taper of 39/64" per foot and a depth of taper reaching 3".

Additionally, the small end has a diameter of 3.740" and a depth from the face of the spindle of 15.5". The gear spindle, on the other hand, offers two options: a standard bore taper hole at the large end measuring 2-19/64" and a large bore taper hole at 3-29/32". Both options maintain a depth of taper of 3" and provide the necessary precision for rigorous testing. We understand that many sellers choose to part with their machines for various reasons, such as upgrading to newer technology, downsizing operations, or even closing a facility. Whatever the reason, we are here to help you navigate the selling process smoothly. Our team at Superior Machine Tools is dedicated to offering fair prices for your used CNC machinery, ensuring that you receive a competitive return on your investment.

When you sell your GLEASON 512 HYPOID TESTER to us, you can expect fast payments and a hassle-free logistics experience. We buy nationwide, so no matter where you are located, we can arrange for the pickup and transportation of your machine. If you have a GLEASON 512 HYPOID TESTER or similar equipment that you are considering selling, we encourage you to reach out to us. Let us take the burden off your hands, and turn your unused machinery into cash today.
