Doosan TT1800SY Specifications
| # Axis | 4 |
|---|---|
| 2nd Spindle Bore | 3.0" |
| 2nd Spindle Chuck | ASA A2#6 |
| 2nd Spindle HP | 20 HP |
| 2nd Spindle RPM | 5000 RPM |
| Axis X | 6.5" |
| Axis Y | 3.9" |
| Axis Z | 27.6" |
| A Axis Travel | 30.3" |
| A Axis Rapid Traverse | 1574 IPM |
| Spindle Speed | 5000 RPM |
| Spindle Motor Power | 29.5 HP |
| Max. Spindle Torque | 153.5 ft-lbs |
| Spindle Nose | ASA A2#6 |
| Spindle Bearing Diameter | 4.3" |
| C Axis Travel | 360 deg (in 0.001deg.increment) |
| Tool Positions | 24 |
| Tool Storage Capacity | 24 |
| Max. ID Tool Size | 1.3" |
| Turret Indexing Time | 0.15 sec |
| Max. Rotary Tool Speed | 5000 RPM |
| Rotary Tool Motor Power | 7.5 HP |
| Power Consumption | 75.21 kVA |
| Approximate Dimensions | 153" x 82" x 82" |
| Approximate Machine Weight | 19,400 lbs |
| Other | Chuck Size: 8" |
| Bar Working Diameter | 65 mm (2.6") |
| X1 Rapid Traverse | 787 IPM |
| Z1 Rapid Traverse | 1574 IPM |
| Y-axis Rapid Traverse | 295 IPM |
| Machine Height | 82" |
| Chip Removal System | Yes |
| Coolant System | Yes |
| Control System Type | CNC |
| Software Compatibility | Yes. |
Do you have a Doosan TT1800SY to sell?

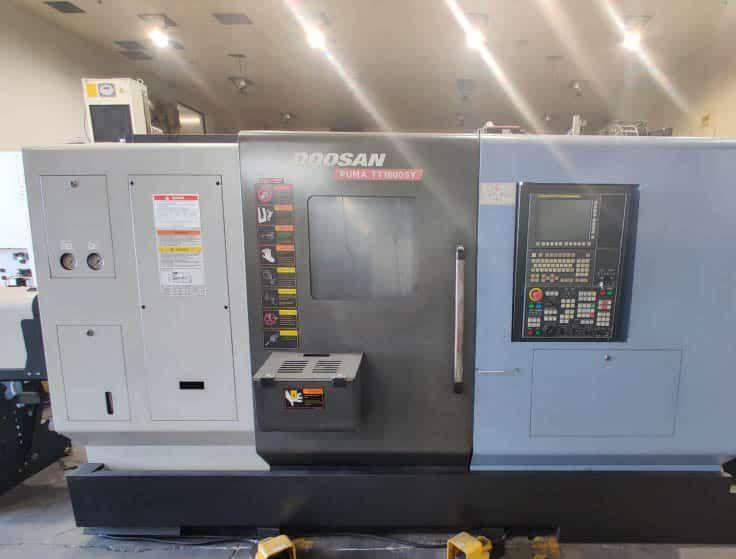

We are actively seeking a 2013 Doosan Puma TT1800SY CNC multi-tasking machine. This remarkable machine is well-regarded for its versatility and precision in both milling and turning operations. Equipped with dual spindles, the left spindle boasts a powerful 29.5 HP motor, while the right spindle operates at 20 HP, providing a maximum spindle speed of 5000 RPM. The robust design features an 8" chuck size and a bar working diameter of 65 mm (2.6"), making it ideal for a variety of applications. The travel distances on this model are impressive, with X1 travel reaching 6.5" and X2 travel extending to 7.5". The Z1 and Z2 axes allow for 27.6" and 28.3" of movement, respectively, complemented by a Y-axis travel distance of 3.9" and an A-axis travel distance of 30.3".
These specifications enable shops to handle complex workpieces with ease. Rapid traverses are noteworthy as well, with X1 at 787 IPM, Z1 at 1574 IPM, Y-axis at 295 IPM, and A-axis at 1574 IPM, allowing for efficient machining processes. This model also includes a C-axis with a minimum indexing angle of 360 degrees in 0.001-degree increments, providing unmatched precision. The upper and lower turrets each feature 24 tool stations, with a turret indexing time of just 0.15 seconds, ensuring minimal downtime during tool changes. The rotary tool speed reaches up to 5000 RPM, powered by a 7.5 HP motor, making it suitable for high-speed operations. Sellers often part with machines like the Doosan Puma TT1800SY for a variety of reasons, including upgrading to newer technology, downsizing operations, or closing facilities altogether.
Regardless of your reason, we understand the importance of getting a fair value for your equipment. At Superior Machine Tools, we buy nationwide, ensuring a smooth and efficient process for you. We handle all logistics and offer fast payments, making it easy for you to transition from your old machine to new opportunities. If you have a 2013 Doosan Puma TT1800SY or similar CNC multi-tasking machine, reach out to us today to discuss how we can help you sell your equipment quickly and effortlessly.
