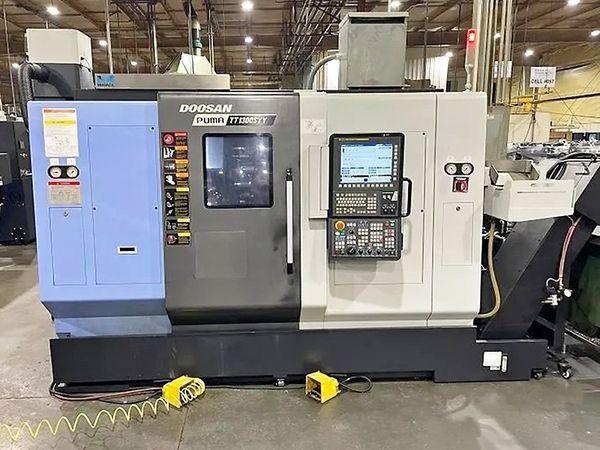

Doosan TT1300SYY Specifications
| # Of Axes | 2 |
|---|---|
| Swing Over Bed | 175 mm (6.89") |
| Swing Over Carriage | 175 mm (6.89") |
| Maximum Turning Diameter (Upper Turret) | 175 mm (6.89") |
| Maximum Turning Diameter (Lower Turret) | 175 mm (6.89") |
| Distance Between Left And Right Spindle Nose | 750 mm (29.5") |
| Maximum Bar Capacity | 42 mm (1.65") |
| Recommended Chuck Size | 150 mm (6") |
| Spindle Speed | 6,000 RPM |
| Spindle Nose | A2-5 |
| Left Spindle Draw Tube ID | 52 mm (2.047") |
| Spindle Bore Diameter | 61 mm (2.4") |
| AC Spindle Motor | 11 kW (10 hp) |
| Maximum Spindle Torque | 116 Nm (86 ft-lb) |
| Max Bar Length | 915 mm (36”) |
| Minimum Programmable Angle (C-Axis) | 0.001 degree |
| Rapid Traverse Rate (C-Axis) | 600 RPM |
| C-Axis Repeatability | ±0.006 degree |
| C-Axis Positioning Accuracy | 0.0167 degree |
| C-Axis Braking Torque | 132 Nm (97 ft-lb) |
| A Axis Travel (Right Spindle) | 540 mm (21.26") |
| Draw Tube ID (Right Spindle) | 40 mm (1.57") |
| Spindle Bore Diameter (Right Spindle) | 53 mm (2.08") |
| AC Spindle Motor (Right Spindle) | 11 kW (15 hp) |
| Maximum Spindle Torque (Right Spindle) | 93 Nm (69 ft-lbs) |
| Standard Chuck Size (Right Spindle) | 135 mm (5.0") |
| Y-Axis Travel (Total) | 80 mm (±40mm) (3.15" (±1.57”)) |
| Y-Axis Travel (Above Center) | 40 mm (1.57") |
| Y-Axis Travel (Below Center) | 40 mm (1.57") |
| Y-Axis Rapid Traverse Rate | 15 m/min (590 ipm) |
| Y-Axis Repeatability | ±0.002 mm (±0.00008") |
| Y-Axis Feed Thrust (Continuous) | 7,574 N (1,702 lb) |
| Y-Axis Feed Thrust (Intermittent) | 12,118 N (2,724 lb) |
| Angle Of Slant Bed | 45-degree |
| X1 Axis Travel | 135 mm (5.31") |
| Z1 Axis Travel | 530 mm (20.86") |
| X2 Axis Travel | 135 mm (5.3") |
| Z2 Axis Travel | 530 mm (20.86") |
| X Axis Rapid Traverse Rate | 30 m/min (1,181 ipm) |
| Z Axis Rapid Traverse Rate | 40 m/min (1,575 ipm) |
| X Axis Ball Screw Diameter | 32 mm (1.26") |
| Z Axis Ball Screw Diameter | 32 mm (1.26") |
| X1 Axis Feed Thrust (Continuous) | 8,451 N (1,890 lb) |
| X1 Axis Feed Thrust (Intermittent) | 11,832 N (2,660 lb) |
| Z1 Axis Feed Thrust (Continuous) | 5,634 N (1,266 lb) |
| Z1 Axis Feed Thrust (Intermittent) | 7,888 N (1,773 lb) |
| X2 Axis Feed Thrust (Continuous) | 7,606 N (1,709 lb) |
| X2 Axis Feed Thrust (Intermittent) | 10,649 N (2,394 lb) |
| Z2 Axis Feed Thrust (Continuous) | 5,634 N (1,266 lbs) |
| Z2 Axis Feed Thrust (Intermittent) | 7,888 N (1,773 lb) |
| A Axis Feed Thrust (Continuous) | 5,634 N (1,266 lb) |
| A Axis Feed Thrust (Intermittent) | 7,888 N (1,773 lb) |
| X Axis Repeatability | ±0.002 mm (±0.00008") |
| Z Axis Repeatability | ±0.003 mm (±0.00012") |
| Turret Stations | 12 + 12 |
| Turret Indexing Positions | 24 + 24 |
| Tool Holder Type | BMT-45 |
| Turning Tool Shank Size | .75" |
| Boring Bar Diameter | 1.0" |
| Turret Index Time | 0.1 second |
| Tool Selection | Bi-directional |
| Turret Index Repeatability | ±0.0005 degree |
| Rotating Tool RPM | 6,000 RPM |
| Rotating Tool Spindle Motor | 3.7 kW (5 hp) |
| Rotating Tool Torque | 23.5 Nm (17 ft-lb) |
| Rotating Tool Collet Type | ER 20 |
| Milling Collet Capacity | 3/32 to 1/2" |
| Coolant Pump Pressure | 4.5 bar (65 psi) |
| Coolant Pump Motor | .75 kW (1.0 hp) |
| Coolant Tank Capacity | 430 l (113 gal) |
| Hydraulic Tank Capacity | 32 l (8.4 gal) |
| Way Lubrication Tank Capacity | 2 l (.5 gal) |
| Way Lubrication Grease Capacity | .7 l (.18 gal) |
| Machine Weight | 8,100 kg (17,860 lb) |
| Floor Space - Length x Width | 3,510 mm x 2,300 mm (138" x 90.5") |
| Machine Height | 2,070 mm (81.5") |
| Height From Floor To Spindle Center | 1,160 mm (45.67") |
| Voltage | 205-235V/3 Ph/60 Hz |
| Power Requirement | 52 kVA (136 Amps @ 220 Volts) |
| Equipped With | FANUC i control with iHMi touch screen interface with swiveling operator's panel, and Easy Operation Package |
| Other | Kitagawa 6” B206 3-jaw chuck (one has a Samchully 6” 3-jaw with special 165mm jaws) |
| Other | Auto Door |
| Other | Turbo Chip Conveyor |
| Other | Robot Ethernet IP Interface |
| Other | ATS Collet Nose |
| Other | Bar Feed Interface |
| Other | Parts Catcher |
| Other | Tool Setter |
| Other | Auto Metered Lube |
| Other | Signal Tower. |
Do you have a Doosan TT1300SYY to sell?
We are actively seeking a 2019 DOOSAN TT1300SYY Live Tooling Lathe. This exceptional machine combines advanced technology with robust performance, making it an ideal addition for any shop looking to enhance their capabilities. With a swing over bed of 175 mm (6.89 inches) and a maximum turning diameter for both the upper and lower turret of 175 mm (6.89 inches), the DOOSAN TT1300SYY is designed to handle a variety of applications efficiently. It features a main spindle with a maximum bar capacity of 42 mm (1.65 inches) and a spindle speed of 6,000 RPM, providing the versatility that modern manufacturing demands. Equipped with an A2-5 spindle nose and an AC spindle motor rated at 11 kW (10 hp), this lathe delivers substantial torque—116 Nm (86 ft-lb) at a 25% S3 rating—ensuring you can tackle even the most challenging jobs with ease.
The machine's C-axis capabilities allow for precise positioning, with a minimum programmable angle of just 0.001 degrees, making it perfect for intricate work that requires high accuracy. The Y-axis travel also enhances its functionality, offering a total travel of 80 mm (±40 mm), which is particularly useful for complex machining tasks. As shops evolve, many owners find themselves upgrading their equipment to stay competitive or downsizing operations due to market changes. Others may be closing their facilities entirely, leading to the need to liquidate their assets, including high-quality machines like the DOOSAN TT1300SYY. Whatever your reason for selling, we understand the importance of a smooth transition and are here to help.
At Superior Machine Tools, we pride ourselves on our straightforward buying process. We buy machines nationwide, offering fast payments and handling all logistics to make the experience as hassle-free as possible for you. If you own a 2019 DOOSAN TT1300SYY or similar equipment, we'd love to hear from you. Let us help you turn your unused assets into cash while you focus on what you do best. Contact us today to discuss your options and see how we can assist you in selling your machine quickly and efficiently.
