CNC Lathes

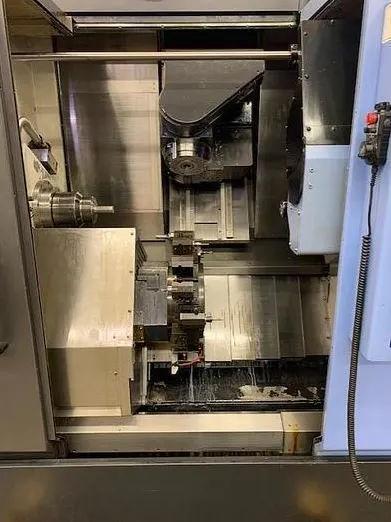

Doosan PUMA MX 1600ST (2013)

Call 800-822-9524

Sell your Doosan PUMA MX 1600ST 2013 today.

MakeDoosan

ModelPUMA MX 1600ST

Year2013

CategoryCNC Lathes

ConditionUsed

Doosan PUMA MX 1600ST Specifications

Atc Capacity	40 ATC
Axis Of Rotation	B-Axis
Chuck Size	6 mm
Chuck Type	Hydraulic
Control Type	CNC (Fanuc 31i-B5)
Distance Between Centers	35.4"
Main Spindle Power	20 HP
Main Spindle Speed	6,000 RPM
Main Spindle Taper	CAPTO
Max Cutting Diameter	13"
Max Cutting Length	35.4"
Max Tool Diameter	2.8"
Max Tool Length	7.9"
Number Of Tool Stations	40 ATC
Rapid Traverse Rate - X	1417 IPM
Rapid Traverse Rate - Y	1024 IPM
Rapid Traverse Rate - Z	1417 IPM
Sub Spindle Chuck Size	6
Sub Spindle Horse Power	20
Sub Spindle Speed	6,000 RPM
Turret Positions	16
X-Axis Travel	17.7"
Y-Axis Travel	6.7"
Z-Axis Travel	36.8"
Other	Bar Feed
Other	Chip Conveyor
Other	Approx Dimensions (LXWXH): 109" X 130" X 105.5"
Other	Approx Machine Weight: 24,910 LBS
Other	Maximum Swing: 26.77"
Other	Main Spindle Bore: 2.44"
Other	Main Spindle Maximum Bar Work: 2"
Other	2Nd Spindle Chuck Type: Collet
Other	2Nd Spindle Bore Size: 2.0
Other	B-Axis Milling Spindle Speed: 12,000 RPM
Other	B-Axis Milling Spindle Horse Power: 12
Other	Lower Turret Positions: 16
Other	Main Spindle Chuck: ROYAL QG-65 COMPACT QUICK CHANGE ACCU-LENGTH COLLET CHUCK
Other	Maximum Machining Length: 35.4"
Other	Maximum Bar Size: 2"
Other	Milling Spindle HP: 12 HP
Other	Milling Spindle RPM: 12,000 RPM
Other	Max Turning Diameter: 13"
Other	Main Spindle Horsepower (CONT. /30 MINS): 20
Other	Sub Spindle/2Nd Spindle Chuck Size: 6
Other	Sub Spindle/2Nd Spindle Bore Size: 2.0
Other	Sub Spindle/2Nd Spindle Chuck Type: Collet
Other	Sub Spindle/2Nd Spindle Horsepower (CONT. /30 MINS): 20
Other	B-Axis Travel: +/- 120DEG
Other	Dimensions: 150" x 109" x 100"
Other	Weight: 25,570 lbs.

Do you have a Doosan PUMA MX 1600ST to sell?

We are actively seeking a 2013 DOOSAN PUMA MX 1600ST Multi Axis CNC Lathe. This impressive machine features a maximum swing of 26.77 inches and a maximum turning diameter of 13 inches, making it a versatile choice for various machining applications. With a main spindle bore of 2.44 inches and a maximum bar capacity of 2 inches, this lathe is designed for efficiency and precision. The sub spindle adds to its capabilities, allowing for more complex operations and improved productivity. Equipped with a Fanuc 31i-B5 control system, the PUMA MX 1600ST offers user-friendly operation and advanced programming options.

The machine boasts a 40-position automatic tool changer and a 16-position lower turret, providing flexibility and reducing downtime between tool changes. The maximum cutting length of 35.4 inches, combined with an X-axis travel of 17.7 inches and Z-axis travel of 36.8 inches, ensures that this lathe can handle a variety of workpieces. Additionally, the B-axis travel of +/- 120 degrees allows for intricate milling operations, while the milling spindle speed of up to 12,000 RPM ensures that you can achieve high-quality finishes. With a main spindle horsepower of 20 and a sub spindle horsepower of the same, this machine is built to perform under demanding conditions. Many sellers part with machines like the DOOSAN PUMA MX 1600ST for various reasons, including upgrading to newer technology, downsizing operations, or closing facilities.

If you find yourself in a similar situation, we understand that parting with your machine can be a significant decision. Rest assured, we are here to make the process as smooth as possible. At Superior Machine Tools, we buy CNC machines nationwide, offering fast payments and handling all logistics for you. Whether you are in the aerospace sector, a job shop, or general manufacturing, we are ready to provide a fair and competitive offer for your used equipment. Contact us today to discuss your machine and see how we can assist you in selling your DOOSAN PUMA MX 1600ST.
