2006 DMG MORI SL-603CMC/2000
Used · Metal Cutting
CNC Lathes

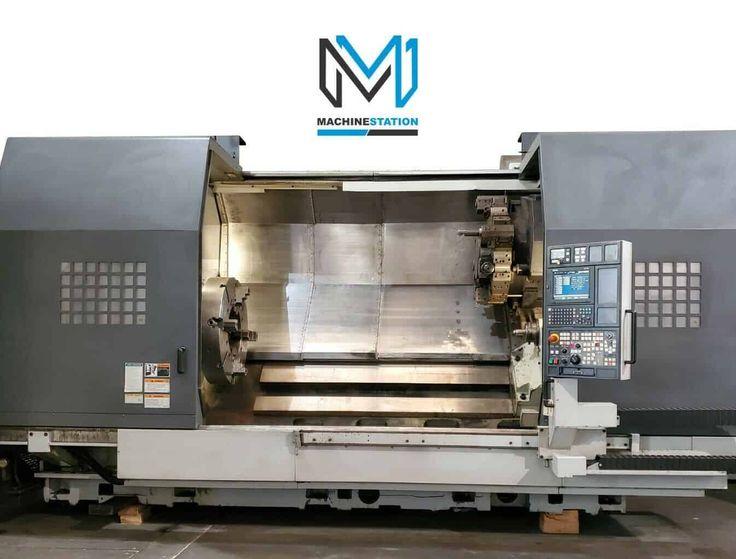

DMG MORI SL-603CMC/2000
2 DMG MORI SL-603CMC/2000 listings have come through the used market we track on 2 marketplaces, built in 2006 where the listing gave a year.
What the maker publishes about the current DMG MORI SL-603CMC/2000
DMG MORI's SL 603 is a universal turning lathe in the SL series, offered in four lengths, Type 1000, 2000, 3000 and 4000, whose maximum workpiece lengths are 1,000, 2,000, 3,000 and 4,000 mm. The Type 2000 takes workpieces up to 2,000 mm (79 in) long. The maximum workpiece diameter is 930 mm (37 in), the X stroke is 485 mm (19 in), and bar capacity reaches 375 mm (15 in). The through-spindle hole comes in three diameters, 180, 275 and 370 mm. All axes run on slideways, over a trapezoidal bed with a triangular saddle, and the turret indexes in 0.4 seconds per station. For control and software, the page lists MAPPS and Fanuc and describes MAPPS on a FANUC 0i-MF.
Source: DMG MORI, October 14, 2026.
DMG MORI SL-603CMC/2000 specifications
Manufacturer specification (archived). This model is out of current production, so the figures below come from the manufacturer’s own specification as it was published at the time, recovered from an archived capture and checked back against it word for word.
Capacity and travels
Max turning diameterMax. turning diameter
930 mm (36.6 in.)1
Max turning lengthMax. turning length
2,000 mm (78.7 in.)1
Chuck sizeApplicable chuck size
24-inch2
X-axis travel
485 <465+20> mm (19.1 <18.3+0.8> in.)1
Z-axis travel
2,100 mm (82.7 in.)1
Spindle and speed
Max spindle speedMax. spindle speed
700 [1,000] min-11
Table, turret and tools
Turret stationsNumber of tool stations
10 [12] <rotary tool: 10 [12]>1
Live toolingMax. rotary tool spindle speed
3,000 min-12
Further figures the manufacturer publishes
Standard turning diameter
461 [374 *1] mm (18.1 [14.7 *1] in.)1
- archived manufacturer page, fetched September 16, 2026.
- archived manufacturer page, fetched September 16, 2026.
- manufacturer specification page, fetched September 16, 2026.
- manufacturer specification page, fetched September 16, 2026.
What fits a DMG MORI SL-603CMC/2000
Each of these follows from a published specification above, which is named beside it.
Workholding
A 24-inch chuck. Jaw sets, soft jaws and collet chucks for this size are commodity items, but the chuck itself, and any spare jaws, travel with the machine and are counted in an offer.
Derived from Chuck size: 24-inch
What to check on a DMG MORI SL-603CMC/2000
- Spindle. The manufacturer gives a spindle speed of 700 [1,000] min-1. Run the spindle to top speed and listen for bearing noise.
- Axes and way covers. The manufacturer gives X 485 <465+20> mm (19.1 <18.3+0.8> in.) and Z 2,100 mm (82.7 in.) of travel. Run each axis end to end and check the way covers.
- Turret. The manufacturer gives the turret stations as 10 [12] <rotary tool: 10 [12]>. Index every station and time a full turn.
- Rotary tools. The manufacturer gives the rotary tooling as 3,000 min-1. Check that the rotary tools still drive under load.
DMG MORI SL-603CMC/2000 listing history
Where it was listed
machinestation.us
1 listing
usedcnc.com
1 listing, model year 2006
Model years seen
2006.
Every DMG MORI SL-603CMC/2000 we have tracked
1 more listing gave no year.
The DMG MORI SL-603CMC/2000 among lathes and turning centers
Browse all CNC Lathes, or see every DMG MORI machine we track.
Models related to the DMG MORI SL-603CMC/2000
DMG MORI SL-65C
Same series
