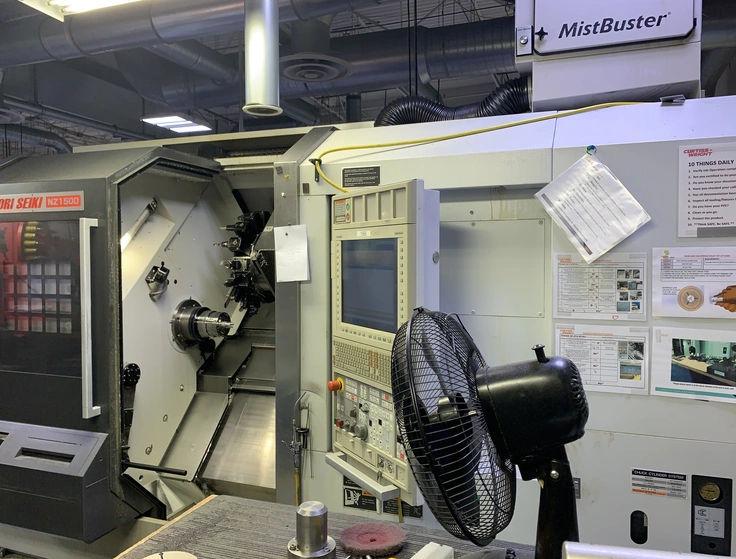

Sell your DMG MORI NZ 1500 T2Y2 2011 today.
DMG MORI NZ 1500 T2Y2 Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 2.4" |
| 2nd Spindle Chuck | Collet |
| 2nd Spindle HP | 29.5 |
| 2nd Spindle RPM | 6,000 RPM |
| 12 Position Lower Turret | 12 |
| A Axis Travel | Not Provided |
| A Axis Rapid Traverse | Not Provided |
| Accuracy and Precision | Not Provided |
| Air Requirements | Not Provided |
| Approximate Dimensions | Not Provided |
| Approximate Machine Height | Not Provided |
| Approximate Machine Weight | Not Provided |
| ATC Capacity | Not Provided |
| ATC Magazine Capacity | Not Provided |
| Automatic Tool Changer Capacity | Not Provided |
| Axes | Not Provided |
| Axis Rapid Rates | Not Provided |
| Axis Travels | Not Provided |
| Axis X | Not Provided |
| Axis Y | Not Provided |
| Axis Z | Not Provided |
| B Axis Coupling | Not Provided |
| B Axis Head Indexing | Not Provided |
| B Axis Travel | Not Provided |
| B Axis Milling Spindle Speed | Not Provided |
| B Axis Spindle Speeds | Not Provided |
| C Axis Travel | Yes |
| Control Type | CNC (MSX 701 IV) |
| Maximum Cutting Diameter | 12.5" |
| Maximum Cutting Length | 31.9" |
| Maximum Tool Diameter | Not Provided |
| Maximum Tool Length | Not Provided |
| Tool Change Time | Not Provided |
| Tool Holder Type | Not Provided |
| Weight Capacity | Not Provided |
| Workpiece Weight Capacity | Not Provided |
| Workpiece Size | Not Provided |
| Spindle Speed Range | Not Provided |
| Spindle Motor Power | Not Provided |
| Tool Positions | Not Provided |
| Rapid Traverse Rate | Not Provided |
| Feed Rate | Not Provided |
| Cutting Speed | Not Provided |
| Number of Tools | Not Provided |
| Tool Storage Capacity | Not Provided |
| Chip Removal System | Not Provided |
| Coolant System | Not Provided |
| Drive System Type | Not Provided |
| Control System Type | Not Provided |
| Software Compatibility | Not Provided |
| Other | Maximum Swing: 31.5" |
| Max Turning Diameter | 12.5" |
| Main Spindle Bore/Max Bar Capacity | 2.4"/2.0" |
| Tail Stock/Sub Spindle | Sub |
| Distance Between Centers | 44.4" |
| X-Axis Travel (X1, X2, X3) | 8.3 |
| Z-Axis Travel (Z1, Z2, Z3) | 31.9 |
| Y-Axis Travel (Y1, Y2, Y3) | 4.3 |
| C-Axis Indexing (1, 2) | Yes |
| W-Axis Travel Sub Spindle | 35.4" |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 29.5 |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 2 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 0 |
| Sub spindle indexing increment | 0.00 |
| Upper Turret Positions | 12 |
| Lower Turret Positions | 12 |
| Y-Axis | Upper and Lower Turrets |
| Driven Tool Positions | Upper and Lower Turrets |
| Rapid Traverse, X-Axis | 1181.0 |
| Rapid Traverse, Y-Axis | 787.0 |
| Rapid Traverse, Z-Axis | 1968.0 |
| Additional Chucks | Two 8" 3 Jaw |
| Additional Tooling | Large Amount of Tooling |
| Control | CNC (MSX 701 IV) |
| Other | Additional Chucks: Two 8" 3 Jaw |
| Other | Additional Tooling: Large Amount of Tooling |
| Other | Control: CNC (MSX 701 IV) |
Do you have a DMG MORI NZ 1500 T2Y2 to sell?
We are actively seeking a 2011 DMG MORI NZ 1500 T2Y2 CNC Multi-Tasking Machine. This exceptional model is designed for precision and efficiency, featuring two 16-station turrets and twin spindles that are equipped with 8" chucks. With a maximum swing of 31.5" and a turning diameter of 12.5", the NZ 1500 T2Y2 is capable of handling a variety of complex machining tasks. The machine boasts a maximum cutting length of 31.9" and an impressive X-axis travel of 8.3", along with a Z-axis travel of 31.9". The Y-axis travel of 4.3" on both turrets enhances its versatility, allowing for intricate operations with ease. This machine is powered by a main spindle that can reach speeds of up to 6,000 RPM, delivering consistent performance with a horsepower rating of 29.5.
Its sub-spindle mirrors these capabilities, ensuring synchronized operations for maximizing productivity. The machine's advanced C-axis indexing adds to its functionality, making it an ideal choice for shops focusing on precision turning and milling applications. We understand that machine owners may choose to sell for various reasons, such as upgrading to newer technology, downsizing operations, or closing a facility altogether. We value the investment you've made in your equipment and are committed to providing a seamless selling experience. When you sell your DMG MORI NZ 1500 T2Y2 to us, you can expect fast payments and a hassle-free process, as we handle all logistics involved in the sale. Our team at Superior Machine Tools is dedicated to making the selling process as straightforward as possible.
We buy machines nationwide, ensuring that regardless of your location, you can benefit from our services. If you're considering selling your 2011 DMG MORI NZ 1500 T2Y2, don't hesitate to reach out. We're ready to discuss your options and help you get the best value for your machine. Let us simplify your selling experience today!
