CNC Lathes

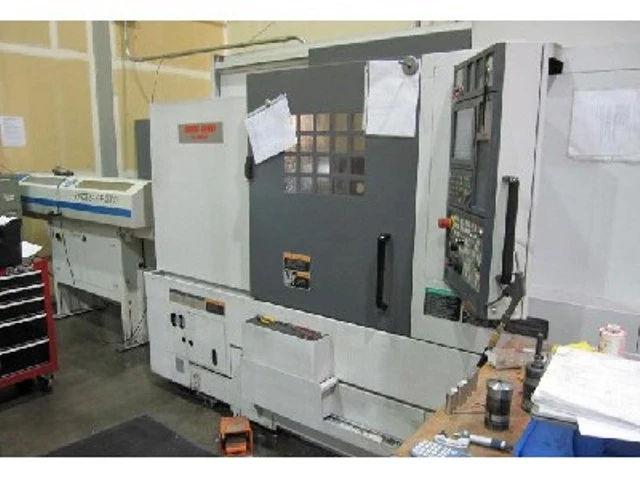

DMG MORI NL 2500SY (2009)

Call 800-822-9524

Sell your DMG MORI NL 2500SY 2009 today.

MakeDMG MORI

ModelNL 2500SY

Year2009

CategoryCNC Lathes

ConditionUsed

DMG MORI NL 2500SY Specifications

# Chuck Size	10"
# Bar Capacity	3.06"
# Turret Positions	12
# Turret Tool Positions	12
# Turret Rotary Tool Spindle Speed	6000
# Turret Rotary Tool Horse Power	7.0
# Main Spindle Speed	4,000 RPM
# Main Spindle Horsepower	25
# Sub Spindle Speed	6,000 RPM
# Sub Spindle Horsepower	20
# Live Tool Spindle Speed	6,000 RPM
# Live Tool Spindle Motor	7.5 HP
# Axis	2
# Of Tools	2
# Of Live Tools	2
# Of Spindle Speeds	1
# Of Threads Metric	1
# Of Threads Inch	1
# Of Feeds	1
Machine Control Type	CNC (MORI MSX-850)
Approx Dimensions Lxwxh	122" X 80" X 84"
Approx Machine Weight	13,600 LBS
Maximum Cutting Length	27.7"
Max Turning Diameter	14"
X-Axis Travel	10.2"
Z-Axis Travel	31.3"
Y-Axis Travel	3.9"
C-Axis Indexing	.001
Bar Feed	Yes
Tool Eye Automatic Front Spindle	Yes
Electrical	220V OR 440V
Other	ImperialMetric
Other	Tail Stock/Sub Spindle: Sub Spindle
Other	Control: CNC (MORI MSX-850)
Other	Rapid Feedrate (X, Z AXIS / Y AXIS): 1181" / 394" IPM
Other	Machine Size: 122" X 80" X 84"
Other	Sub-Spindle Travel: 28.9"
Other	Main Spindle Nose: A2-8"
Other	Sub-Spindle Nose: A2-6"
Other	Main Spindle Bore: 3.15"
Other	Main Spindle Maximum Bar Work: 2.75"
Other	Machine Weight: 13,600 LBS
Other	Approximate Dimensions:
Other	Approximate Height:
Other	Approximate Overall Dimensions:
Other	Machine Footprint:
Other	Chip Removal Method:
Other	Coolant System Type:
Other	Machine Weight:
Other	Electrical Requirements:
Other	Voltage:
Other	Frequency:
Other	Phase:

Do you have a DMG MORI NL 2500SY to sell?

We are actively seeking a 2009 MORI SEIKI NL 2500SY CNC lathe, a remarkable machine designed for multi-axis operations. This model is well-regarded for its precision and versatility, making it an excellent choice for various manufacturing applications. The NL 2500SY boasts a maximum swing of 36.4 inches and a maximum turning diameter of 14 inches, allowing for impressive machining capabilities. It features an advanced MORI MSX-850 control system, which enhances operational efficiency and ease of use. With a main spindle speed of 4,000 RPM and a sub-spindle speed of 6,000 RPM, this machine is built for speed and accuracy, ensuring high-quality production results. Equipped with a 10-inch hydraulic chuck on the main spindle and a collet on the sub-spindle, the NL 2500SY is designed to handle various workpieces with a maximum bar capacity of 2.75 inches.

The machine also includes a bar feeder and parts catcher, making it ideal for high-volume production. The turret offers 12 tool positions and features rapid indexing, allowing for quick tool changes and increased productivity. The X, Y, and Z-axis travels of 10.2 inches, 3.9 inches, and 31.3 inches respectively, provide ample workspace for complex machining tasks. Many sellers choose to part with their MORI SEIKI NL 2500SY for several reasons. Often, they are upgrading to newer technology to enhance their capabilities or improve efficiency. Others may be downsizing or closing facilities, leading them to liquidate machinery that is no longer necessary.

Additionally, some owners find their machines are underutilized and decide it's time to sell while they can still maximize value. At Superior Machine Tools, we understand the importance of a seamless selling process. We buy CNC machines like the MORI SEIKI NL 2500SY nationwide, offering fast payments and handling all logistics. If you have this exceptional machine or similar equipment you're considering selling, reach out to us today. We value your time and investment, and we are here to help you get the best deal possible.
